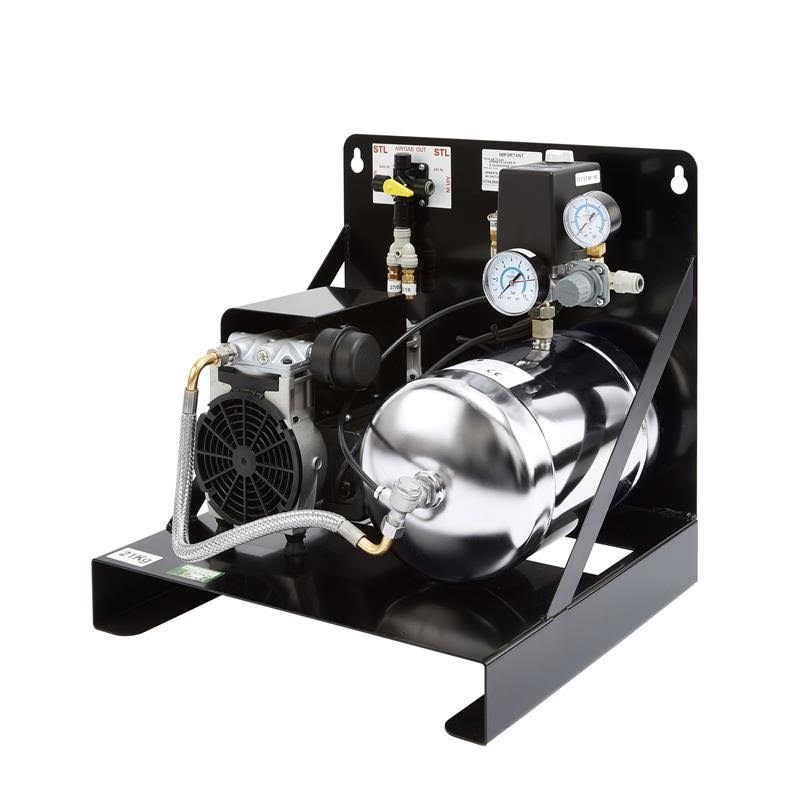

Stanwell STL 80 - Medium-Duty Beverage Compressor

STL 80 - Medium-Duty Beverage Compressor

The STL 80 offers medium-capacity performance, delivering the trusted quality of the STL 110 in a compact footprint. Suitable for G56 (up to 5 pumps) and T5000 (10-12 pumps) installations, it includes a stainless steel air receiver and wall-mounting bracket for convenience and durability.

With a 5-year warranty and efficient oil-free design, the STL 80 ensures dependable performance in demanding beverage dispense environments.

Performance

Free Air Delivery at 0 Bar: 137 L/min

Nominal Operating Pressure: 7 Bar

Sound Pressure Level: 55-58 dB(A)

Protection Class: IP23, F Class Windings

Duty Cycle: 100% Continuous at 7 Bar

Maximum Ambient Temperature: 40°C

Receiver Volume: 9 Litres

Air Outlet Connections: 3/8" Push Fit

Recharge Time (4.5 to 7 Bar): ~27 Seconds (Average)

Features

Stainless Steel Receiver (AISI 304)

Oil-Free Operation - ideal for hygienic and maintenance-sensitive environments

Automatic Condensate Removal from receiver base

Energy-Efficient Design

Lightweight for easy handling and installation

Fail-Safe Overload Protection with Thermal Cut-Out

General Information

Assembled Weight: 21 kg

Quality Standard: Manufactured under ISO 9001/2000
