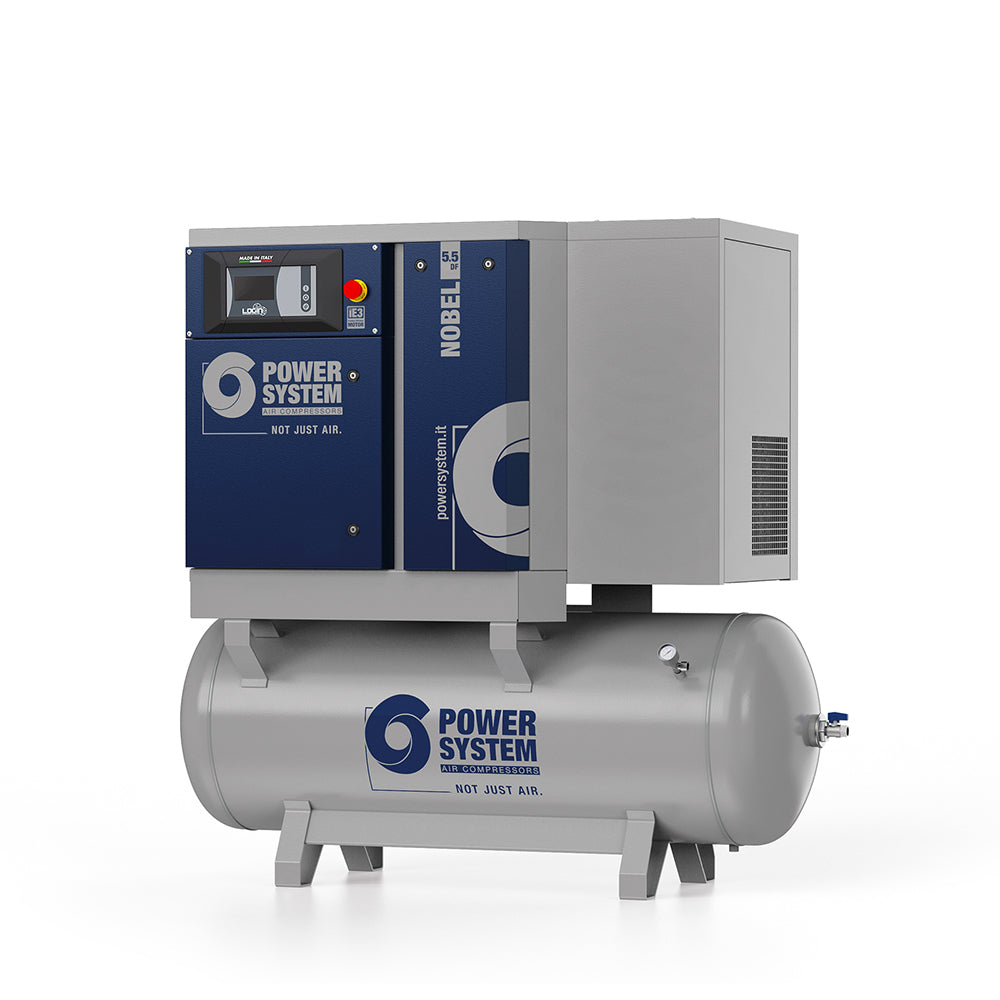

Power Systems NOBEL 5.510-270 DF (LGN) (c.f.m. - 25, L/Min - 710)

Power Systems NOBEL 5.510-270 DF (LGN) (c.f.m. - 25, L/Min - 710)

Regular price £5,658.00
Regular price £9,431.00 Sale price £5,658.00
Sale Sold out
Shipping calculated at checkout.
HIGHLIGHTS:
  • 1:1 Direct drive System Means no  drive belts to service, improved reliability, zero energy losses (V belts may lose between 4% and 11% of the energy transferred from motor to compressor) and very low rotational speed for a longer service life..
  • Low noise levels. The Nobel operates more quietly than competitive compressors. Thanks to the direct drive system, low rotational speed of the compressor, temperature controlled cooling and sophisticated cabinet design the Nobel range offer noise levels as low as 62 dB(A)
  • Highest performance. Thanks to the direct drive system, lower rotational speed, lower temperature and optimised air end design, Nobel provides higher output with lower power consumption when compared to other compressors.
  • LOGIN Controller.All NOBEL models are equipped with the new LOGIN electronic controller with touch-screen display. In addition to full control of all compressor functions, it also stores the data on a specific memory card, so as to manage multiple compressors (up to 8 units, even different types) and for remote control via SMS Device 2.0 that can be matched to the control unit.
  • Advanced cooling system. The deployment of the thermostatically controlled centrifugal cooling fan with the large surface area heat exchanger for the air and oil cooling ensures, lower operating temperature and lower air outlet temperatures. The automatic operation saves energy by operating the fan only when required.
  • Robust and reliable - The NOBEL is designed for continuous use in tough conditions ensuring reliability and a very long life.
  • Simple maintenance - All service items are located in one position with easy access reducing costs and down time.
  • Cabinet pre-filtration - ensures that internal components are protected for improved reliability, improved cooling and reduced maintenance.
  • IE3 High efficiency Motors - Allowing reduced energy consumption.
  • High quality air - The NOBEL is available with fully integrated refrigerated dryer (ES models) and dual oil removing filtration on models up to and including 55kW. Specifically designed to provide dry and clean compressed air to your system for improved reliability of downstream equipment,  improved final product quality, higher efficiency and a safer environment.
  • Long life and reliability - The NOBEL benefits from state of the art manufacturing and over 50 years- experience in the production of air compressors. Most components within the Nobel range are manufactured in-house. Produced by FNA group the worlds largest manufacturer of air compressors.
  • TRUST 5 Year Warranty- All Nobel models are available with our comprehensive long term warranty which is subject to T&C’s

SPECIFICATION
kW - 5.5
Hp - 7
L/min - 710
c.f.m - 25
Bar - 10
Psi - 145
dB(A) - 62
Kg - 280
Product L x W x H (mm) - 1570 x 700 x 1440
Receiver Size - 270Lt
