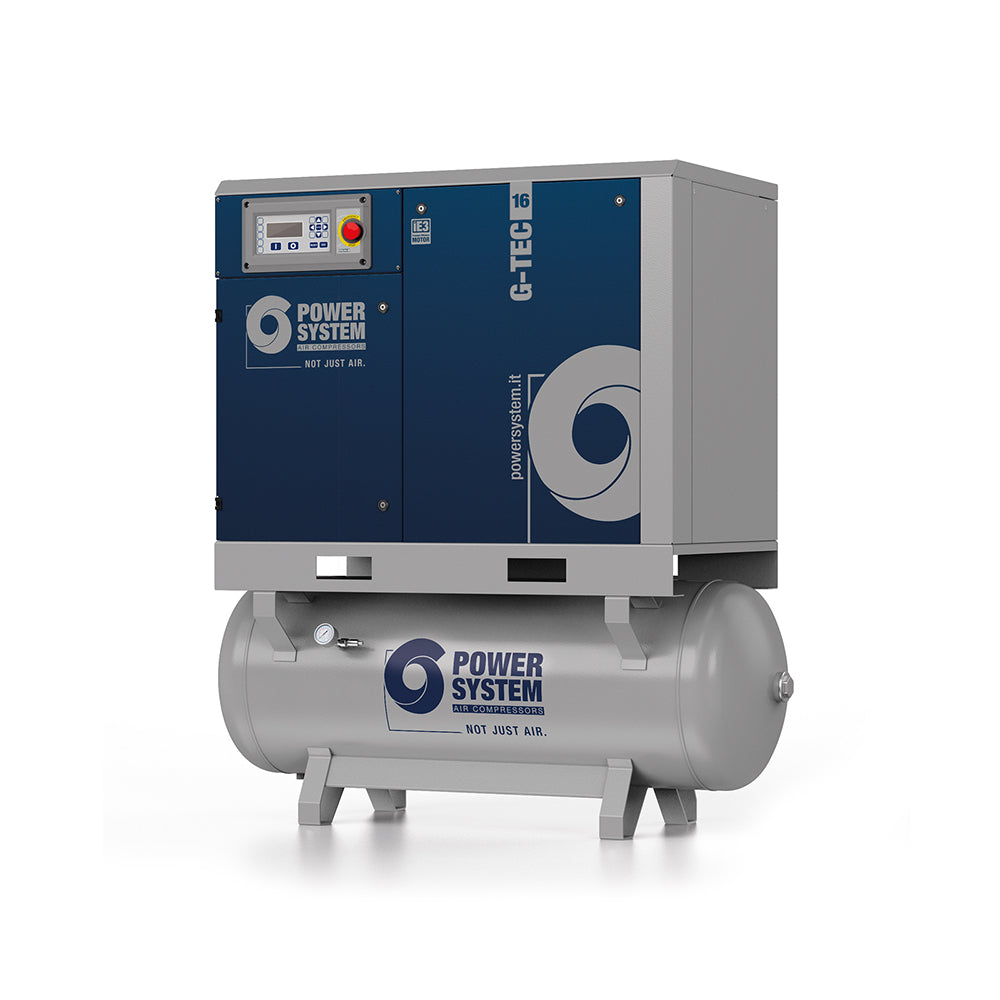

New G-TEC 1610-270 DF (c.f.m. - 72, L/min. - 2050)
New G-TEC 1610-270 DF (c.f.m. - 72, L/min. - 2050)
Couldn't load pickup availability
The PS G-TEC Full Feature Compressed Air Workstation
The advanced controller fitted to the G-TEC range has been specifically developed to guarantee optimum monitoring and regulation of the compressor's operation, allowing flexibility and full programming of the complete compressed air station for maximum efficiency and safety.
 |
DNAir2 Electronic ControllerThe main controller provides a multi-function and multi-language backlit LCD graphic display, the menu is drop down type for simple intuitive operation. The display utilises familiar and convenient icons for ease of use. The main screen displays the following important information:
|
||
Expansion Module Options:GSM/GPRS/Ethernet/WiFi module (for on-line compressor status, remote assistance, connection |
Master/slave functionIt is possible to connect up to 4 compressors for managing the workload in such a way to |
||
 |
|||
 |
High efficiency MotorsThe design of the G-TEC compressors, including the high efficiency IE3 motors, has been fully focused on combining the different components that make up a perfect compressed air installation for a completely integrated, modular and functional system that combines maximum convenience with optimum energy efficiency. |
||
-
All in One for maximum convenience - Includes all components needed to produce dry and clean compressed 24/7.
-
Simple installation - The G-TEC provides an instantly installable solution meaning a more economical and speedier install.
-
Quiet operation - The G-TEC series offer the lowest operating noise levels, as low as 58d(B)A
- Advanced controls - The G-TEC is fully programmable and adaptable to suit any system with advanced functions and network capability, along with the control of up to four other compressors.
-
Single Power supply*- allowing a convenient electrical installation.
- Simple maintenance – A design based on thirty years of experience allowing simple, cost-effective maintenance.
-
Lower energy consumption– High efficiency motor, advanced drive system and our own high performance compressor air end means reduced energy consumption and CO2 production.
-
Advanced drive system – With long life poly v design and minimum energy losses.
-
High quality compressed air - The G-TEC includes a fully integrated air treatment (refrigerated dryer and two oil removing filters) for continuous supply of dry and clean compressed air.
-
Built to last and extremely dependable – Produced in Europe at one of the world most advanced production facilities and proven over many thousands of installations.
-
Flexible Range Chose the model that is perfect for you 7.5 kW-22 kW with 270 or 500 litre air receivers depending on model. Operating pressure; 8, 10 or 13bar.
-
TRUST 5 Year Warranty- All G-TEC models are available with our comprehensive long-term warranty which is subject to T&C’s.
* From September 2024 production
