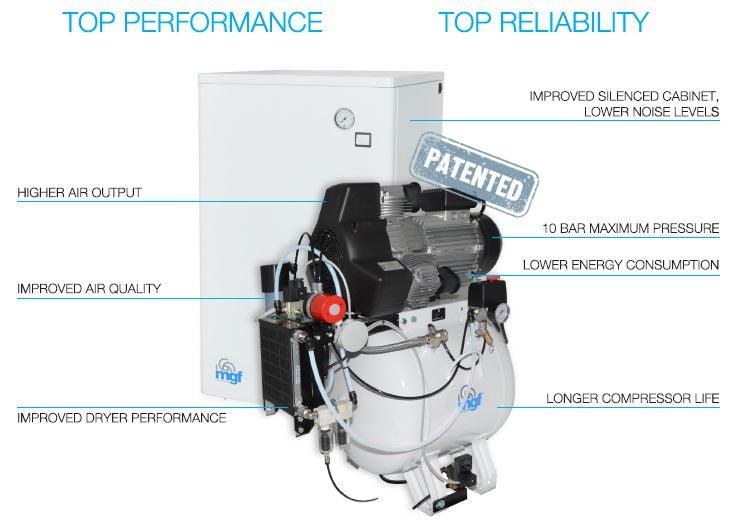

MGF CS50/25 Prime X-Line 2.2kW 10 Bar With Dryer (c.f.m. - 7.9, L/min. - 225)

The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers.

All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 bar providing higher working pressure (8 bar) for general use applications.

Air Treatment Features

• Aftercooler - reduce air temperature
• Dual filtration system - to 0,01 microns
• Membrane dryer - guarantees an average dewpoint of up to -20°C PDP at 5 bar
• Maintenance free - simple design
• Efficient - only requires the replacement of the pre filter elements

HIGHLIGHTS:

• 10 Bar Pressure - Continuously Rated: 120 l/min @ 7 Bar

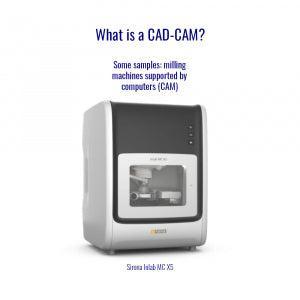

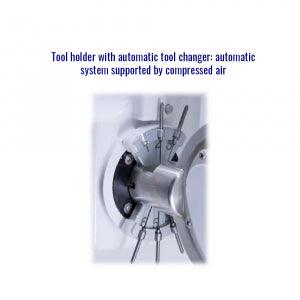

• Designed Specifically for CAD/CAM Milling Machines applications
• Suitable for continuously rated applications in dental and university laboratory
• 2.2 kW - 53 dB(A) - FAD 225 l/min @ 5 Bar - 70% Duty
  FAD 120 l/min @ 7 Bar continuous
• Oil Free, Cabinet silenced, Membrane Dryer
• ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point, and Zero oil trace
• Integrated membrane dryer guaranteeing a dew point of -20°C at 5 Bar
• HTM 2022 compliant (Sterile Filter may be required)
• Internally Coated Receiver Size - 50Lt
• All models utilise an after cooler
• Double filtration system providing an air purity of 0.01 microns
