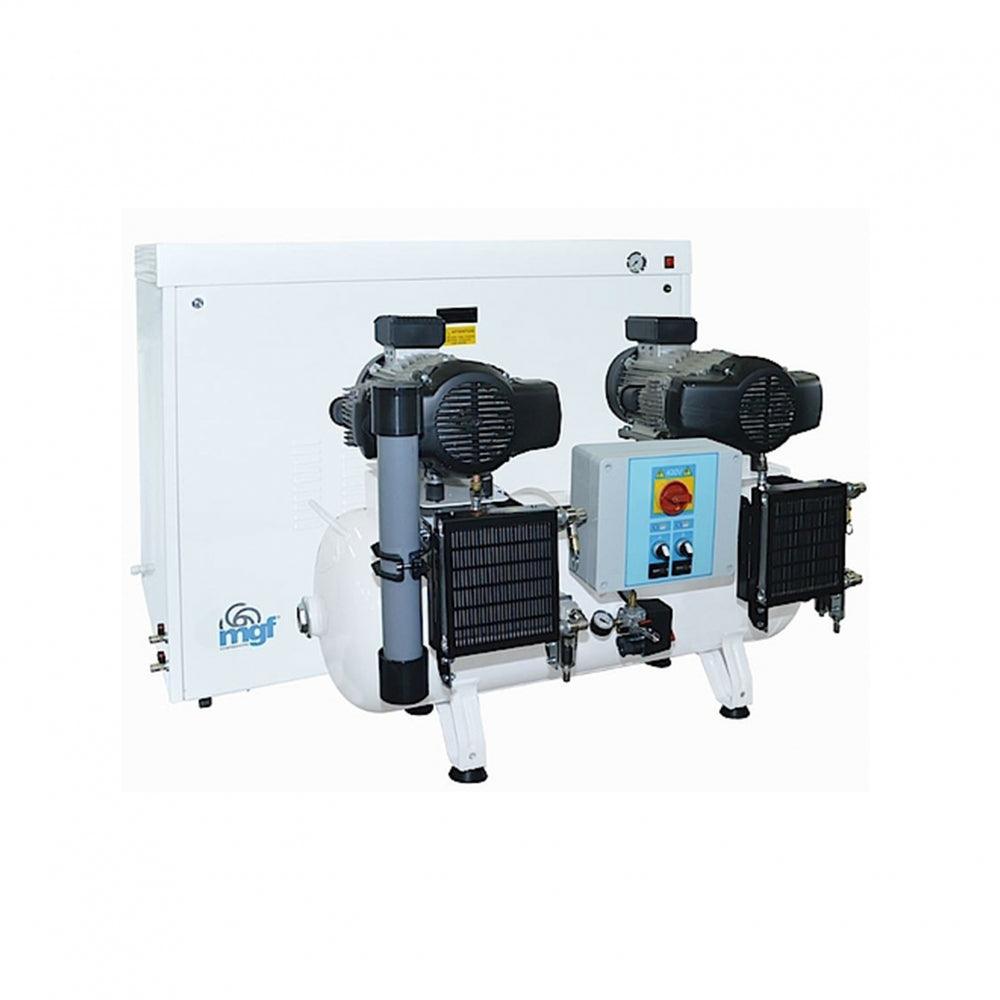

MGF CS100/30 Tandem Prime X-Line 10 Bar With Dryer (c.f.m. - 17, L/min. - 480)

MGF CS100/30 Tandem Prime X-Line 10 Bar With Dryer (c.f.m. - 17, L/min. - 480)

Regular price £6,937.00
Regular price £10,959.00 Sale price £6,937.00
Sale Sold out
Shipping calculated at checkout.

HIGHLIGHTS:

  • 10 Bar Pressure - Continuosly Rated
  • Designed Specifically for CAD/CAM Milling Machines applications
  • Oil Free, Cabinet silenced, Membrane Dryer
  • Internally Coated Receiver Size - 30Lt
  • Integrated membrane dryer guaranteeing a dew point of -20°C at 7 Bar
  • Suitable for continuously rated applications in dental and university laboratory
  • HTM 2022 compliant (dryer and filtration required)
  • All models utilise an after cooler
  • Double filtration system providing an air purity of 0.01 microns
    SPECIFICATION
    Continuous Lt/min @7 Bar - 180
    c.f.m @5Bar - 17
    L/min @5Bar - 480
    Hp - 2+2
    kW - 1.5 + 1.5
    Bar - 10
    Psi - 145
    dB(A) - 56
    Volt - 230
    Receiver Size - 90Lt
    Product L x W x H (mm) - 1245 x 725 x 1020
    Kg - 108

    Open Frame and Silenced Models

    The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers.

    All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 bar providing higher working pressure (8 bar) for general use applications.

    Air Treatment Features

    • Aftercooler - reduce air temperature
    • Dual filtration system - to 0,01 microns
    • Membrane dryer - guarantees an average dewpoint of up to -20°C PDP at 5 bar
    • Maintenance free - simple design
    • Efficient - only requires the replacement of the pre filter elements
