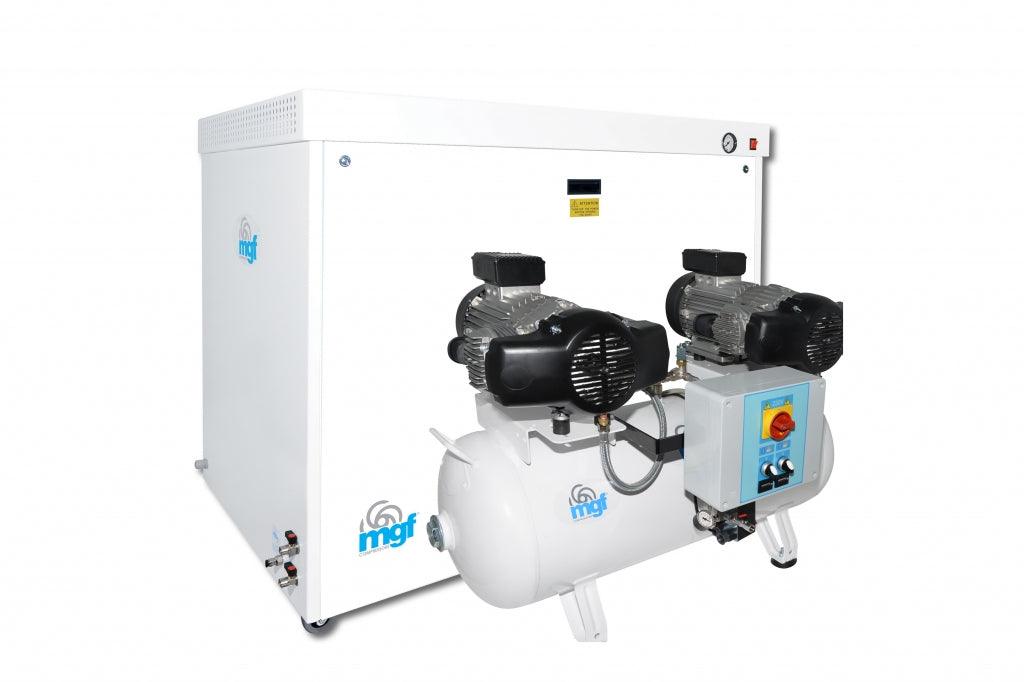

MGF CS100/30 Cabinet Silenced (c.f.m. @5Bar - 12, L/min. @5Bar - 340)
MGF CS100/30 Cabinet Silenced (c.f.m. @5Bar - 12, L/min. @5Bar - 340)
Regular price
£5,229.00
Regular price
£8,300.00
Sale price
£5,229.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
HIGHLIGHTS:
- Tandem Silenced Cabinet - 56 dB(A)
- 1.5+1.5 kW - 340 l/min @ 5 Bar
- Internally Coated Receiver - 90 Lt
- Using PRIME technology: 70% duty, and low temperature output
- Maximum Pressure 10 Bar
- Suitable for laboratory and other applications where oil free and air quality is important
- OPTIONAL: Integrated membrane dryer options guaranteeing a dew point of -20°C at 5 Bar for HTM 2022 Compliance
- OPTIONAL: Double filtration system providing an air purity of 0.01 microns - models with dryer
SPECIFICATION
Chairs - 6
c.f.m @5Bar - 12
L/min @5Bar - 340
Hp - 2+2
kW - 1.5 + 1.5
Bar - 10
Psi - 145
dB(A) - 56
Volt - 230
Receiver Size - 90Lt
Product L x W x H (mm) - 1245 x 725 x 1020
Kg - 210
Open Frame and Silenced Models
The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers. The silenced version, housed in a modern acoustic cabinet, can achieve noise levels as low as 54 dB(A).
All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 bar providing higher working pressure (8 bar) for general use applications.
