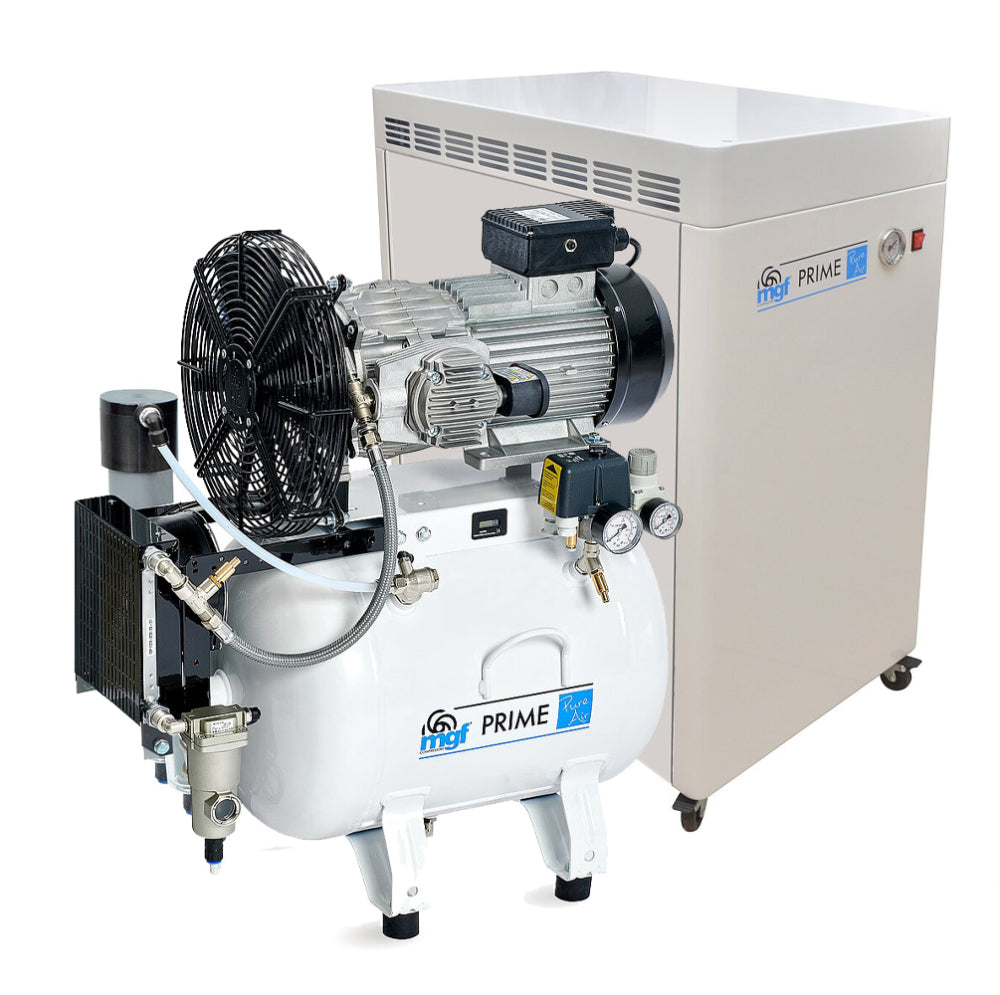

MGF CS 30/15 Prime M - HD Cabinet Silenced With Dryer - HD (c.f.m. @5Bar - 5.4, L/min. @5Bar - 152)

Name: MGF CS 30/15 Prime M - HD Cabinet Silenced With Dryer - HD (c.f.m. @5Bar - 5.4, L/min. @5Bar - 152)
Brand: MGF
SKU: M-PR-CS200-040-M-HD
Price: 3609.00 GBP
Availability: OutOfStock

MGF CS 30/15 Prime M - HD Cabinet Silenced With Dryer - HD (c.f.m. @5Bar - 5.4, L/min. @5Bar - 152)

£3,609.00

~~£5,775.00~~ £3,609.00

Sale Sold out

Shipping calculated at checkout.

Quantity

Description


	Open Frame and Silenced Models The new 100% heavy duty oil-free pump offers reliability and performance for demanding applications. The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers. The silenced version, housed in a modern acoustic cabinet, can achieve noise levels as low as 53 dB(A). All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 Bar providing higher working pressure (8 Bar) for general use applications.

Air Treatment Features Aftercooler - reduce air temperature Dual filtration system - to 0,01 microns Membrane dryer - guarantees an average dewpoint of up to -20Â°C atmospheric at 5 bar Maintenance free - simple design Efficient - only requires the replacement of the pre filter elements

Highlights:

100% Heavy Duty - Oilfree
In Acoustic Cabinet, with Dryer
1.5 kW - 152 l/min @ 5 Bar
Internally Coated Receiver - 40 Lt
Using PRIME technology: 100% duty, 52 dB(A), and low temperature output
Maximum Pressure 10 Bar
ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point atmospheric, and Zero oil trace
Suitable for laboratory and other applications where oil free and air quality is important
Integrated membrane dryer guaranteeing a dew point of -20°C atmospheric at 5 Bar for HTM 2022 Compliance
