MGF

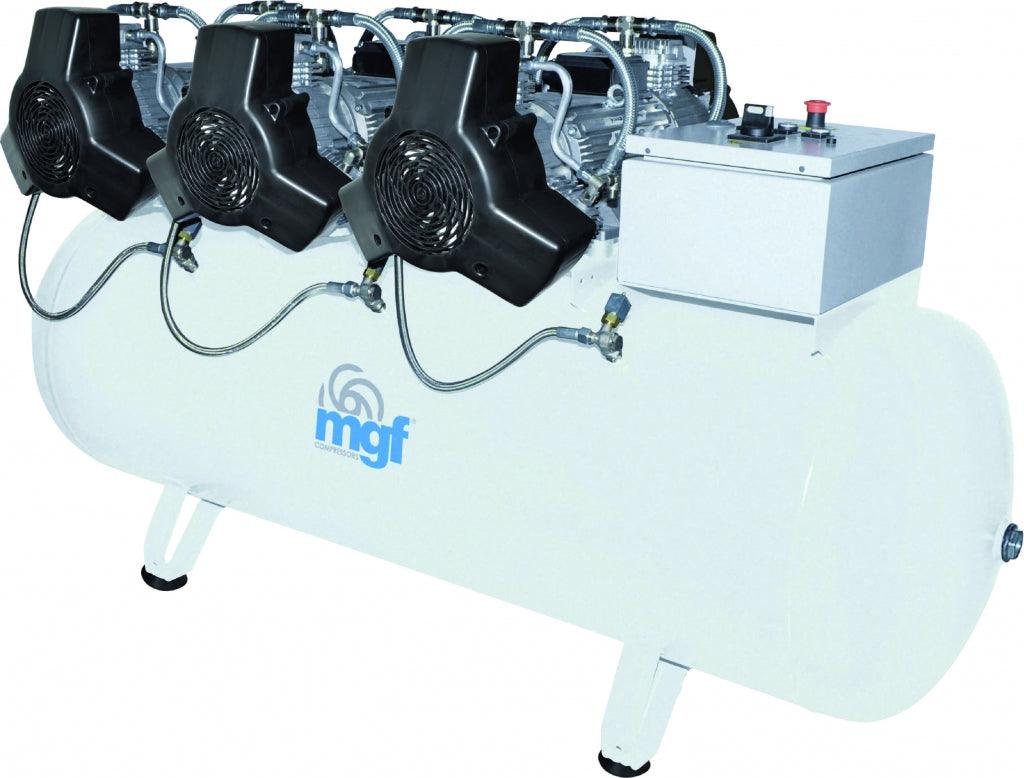

MGF 500/150 Trio Prime T3 - 400V (c.f.m. @5Bar - 47.4, L/min. @5Bar - 1350)

MGF 500/150 Trio Prime T3 - 400V (c.f.m. @5Bar - 47.4, L/min. @5Bar - 1350)

Regular price £11,501.00
Regular price £18,169.00 Sale price £11,501.00
Sale Sold out
Shipping calculated at checkout.

HIGHLIGHTS:

  • Open-Frame - Three Phase
  • 5.5+5.5+5.5 kW TRIO - 1350 l/min @ 5 Bar
  • Internally Coated Receiver - 500 Lt
  • Using PRIME technology: 70% duty, 75 dB(A), and low temperature output
  • Maximum Pressure 10 Bar
  • Suitable for laboratory and other applications where oil free and air quality is important
  • OPTIONAL: Cabinet version from 56 dB(A)
  • OPTIONAL: Integrated membrane dryer options guaranteeing a dew point of -20°C at 5 Bar for HTM 2022 Compliance
  • OPTIONAL: Double filtration system providing an air purity of 0.01 microns - models with dryer
    SPECIFICATION
    Chair- 25
    c.f.m @5Bar - 47.4
    L/min @5Bar - 1350
    Hp - 5+5+5
    kW - 6.5 + 6.5 + 6.5
    Bar - 10
    Psi - 145
    dB(A) - 78
    Volt - 400
    Receiver Size - 500Lt
    Product L x W x H (mm) - 1980 x 780 x 1050
    Kg - 330

    Open Frame and Silenced Models

    The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers..

    All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 Bar providing higher working pressure (8 Bar) for general use applications.
