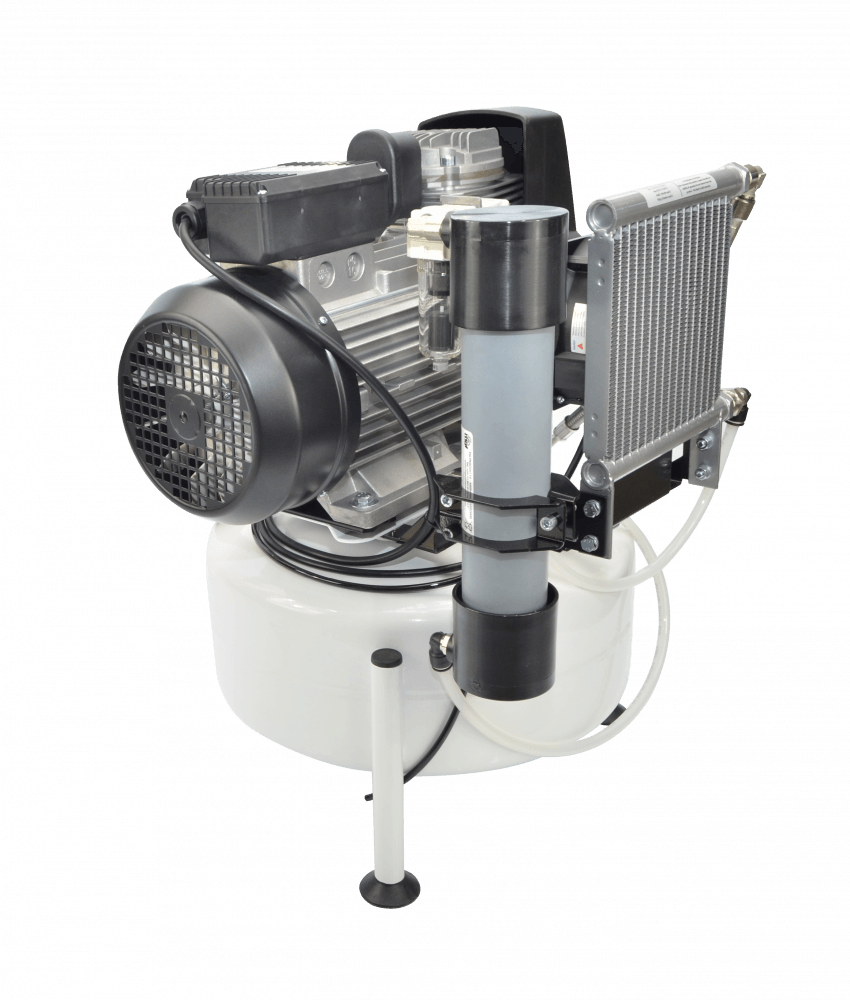

MGF 30/7 Prime M & Dryer (c.f.m. @5Bar - 2.8, L/min. @5Bar - 78)
MGF 30/7 Prime M & Dryer (c.f.m. @5Bar - 2.8, L/min. @5Bar - 78)
Regular price
£2,000.00
Regular price
£3,175.00
Sale price
£2,000.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
HIGHLIGHTS:
-
Open-Frame with Dryer
-
0.75 kW - 85 l/min @ 5 Bar
-
Internally Coated Receiver - 24 Lt
-
Using PRIME technology: 70% duty, 65 dB(A), and low temperature output
- Maximum Pressure 10 Bar
- ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point, and Zero oil trace
-
Suitable for laboratory and other applications where oil free and air quality is important
- Integrated membrane dryer guaranteeing a dew point of -20°C at 5 Bar for HTM 2022 Compliance
- OPTIONAL: Cabinet version from 50 dB(A)
- OPTIONAL: Double filtration system providing an air purity of 0.01 microns - models with dryer
SPECIFICATION
Chairs - 1
c.f.m @5Bar - 2.8
L/min @5Bar - 78
Hp - 1
kW - 0.75
Bar - 10
Psi - 145
dB(A) - 65
Volt - 230
Receiver Size - 24Lt
Product L x W x H (mm) - 500 x 470 x 600
Kg - 36
Open Frame and Silenced Models
The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers.
All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 Bar providing higher working pressure (8 Bar) for general use applications.
Air Treatment Features
- Aftercooler - reduce air temperature
- Dual filtration system - to 0,01 microns
- Membrane dryer - guarantees an average dewpoint of up to -20°C PDP at 5 bar
- Maintenance free - simple design
- Efficient - only requires the replacement of the pre filter elements
