MGF

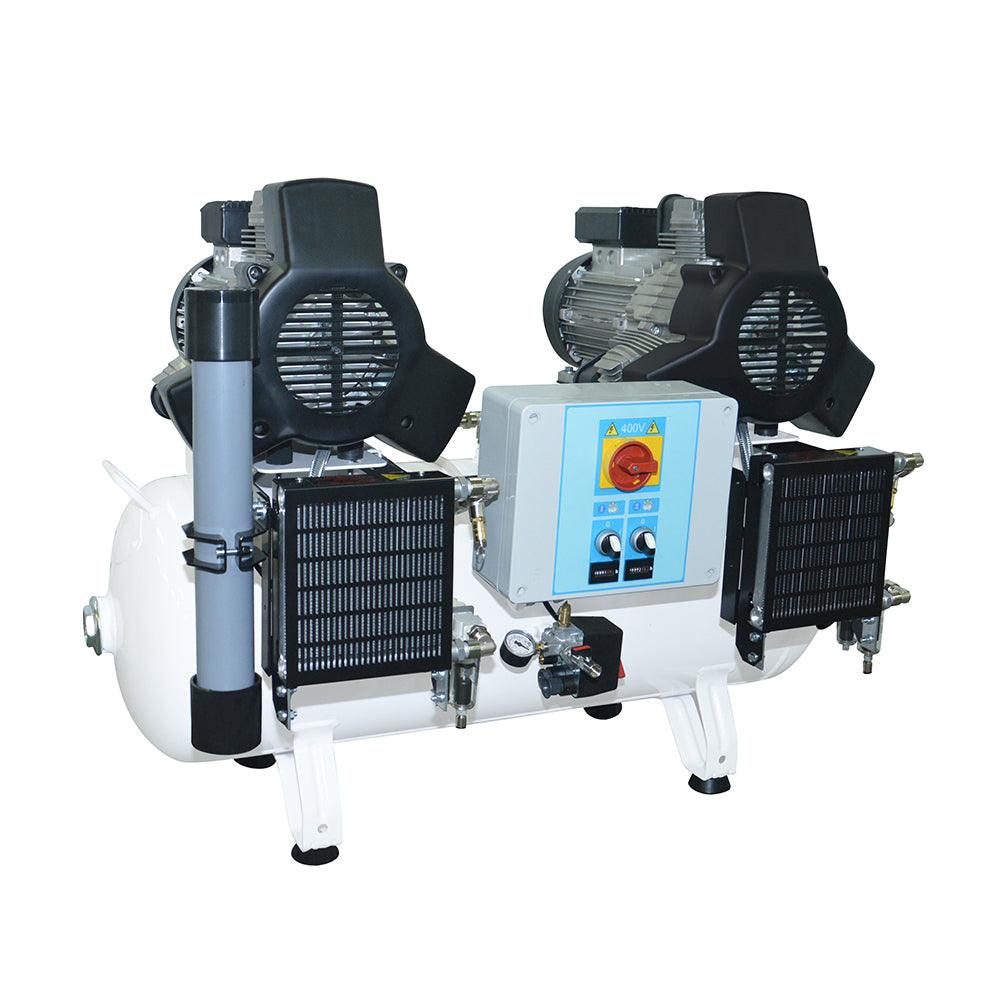

MGF 100/50 Tandem Prime M With Dryer 400V (c.f.m. @5Bar - 15.8, L/min. @5Bar - 450)
MGF 100/50 Tandem Prime M With Dryer 400V (c.f.m. @5Bar - 15.8, L/min. @5Bar - 450)
Regular price
£5,661.00
Regular price
£8,985.00
Sale price
£5,661.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
HIGHLIGHTS:
- Open-Frame with Dryer
- 2.2+2.2 kW TANDEM - 450 l/min @ 5 Bar
- Internally Coated Receiver - 90 Lt
- Maximum Pressure 10 Bar
- Using PRIME technology: 70% duty, 69 dB(A), and low temperature output
- ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point, and Zero oil trace
- Suitable for laboratory and other applications where oil free and air quality is important
- Integrated membrane dryer guaranteeing a dew point of -20°C at 5 Bar for HTM 2022 Compliance
- OPTIONAL: Cabinet version from 56 dB(A)
- OPTIONAL: Integrated membrane dryer options guaranteeing a dew point of -20°C at 5 Bar for HTM 2022 Compliance
- OPTIONAL: Double filtration system providing an air purity of 0.01 microns - models with dryer
SPECIFICATION
Chair- 9
c.f.m @5Bar - 15.8
L/min @5Bar - 450
Hp - 3+3
kW - 2.2 + 2.2
Bar - 10
Psi - 145
dB(A) - 69
Volt - 400
Receiver Size - 90Lt
Product L x W x H (mm) - 1100 x 630 x 820
Kg - 118
Open Frame and Silenced ModelsThe unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers. All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 bar providing higher working pressure (8 bar) for general use applications. Air Treatment Features
|
