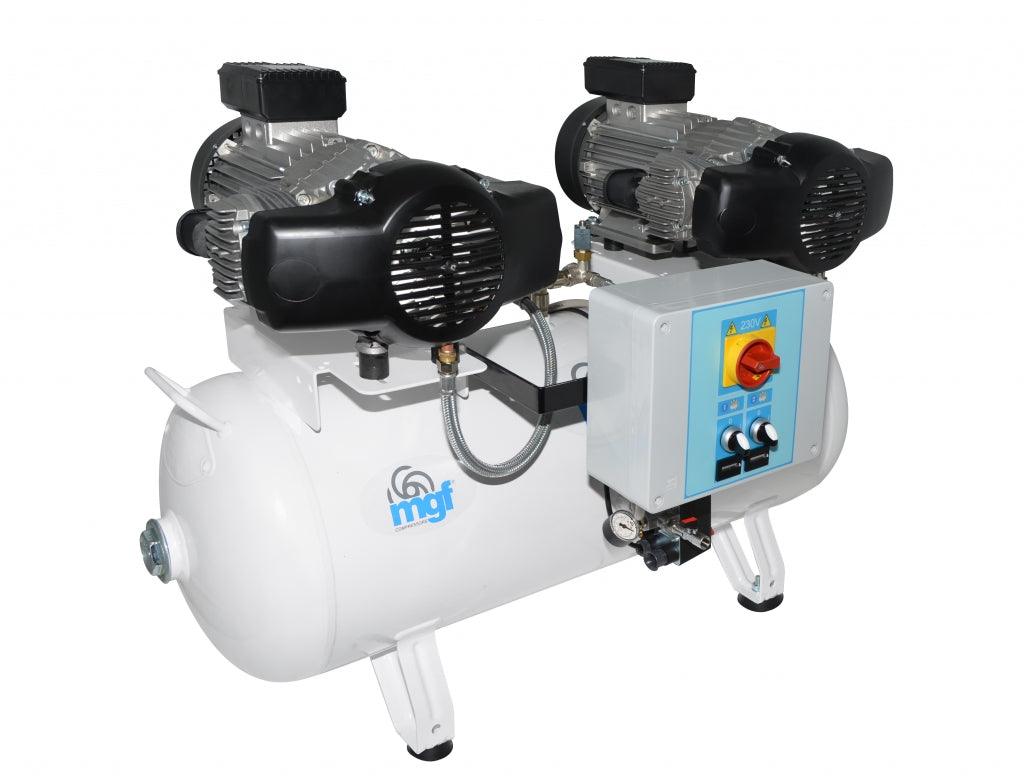

MGF 100/30 Tandem Prime S (c.f.m. @5Bar - 12, L/min. @5Bar - 340)

MGF 100/30 Tandem Prime S (c.f.m. @5Bar - 12, L/min. @5Bar - 340)

Regular price £3,134.00
Regular price £4,951.00 Sale price £3,134.00
Sale Sold out
Shipping calculated at checkout.

HIGHLIGHTS:

  • Open-Frame
  • 1.5+1.5 kW TANDEM - 340 l/min @ 5 Bar
  • Internally Coated Receiver - 90 Lt
  • Maximum Pressure 10 Bar
  • Using PRIME technology: 70% duty, 69 dB(A), and low temperature output
  • Suitable for laboratory and other applications where oil free and air quality is important
  • OPTIONAL: Cabinet version from 56 dB(A)
  • OPTIONAL: Integrated membrane dryer options guaranteeing a dew point of -20°C at 5 Bar for HTM 2022 Compliance
  • OPTIONAL: Double filtration system providing an air purity of 0.01 microns - models with dryer
        SPECIFICATION
        Chair- 6
        c.f.m @5Bar - 12
        L/min @5Bar - 340
        Hp - 2+2
        kW - 1.5 + 1.5
        Bar - 10
        Psi - 145
        dB(A) - 69
        Volt - 230
        Receiver Size - 90Lt
        Product L x W x H (mm) - 1100 x 600 x 810
        Kg - 97

        Open Frame and Silenced Models

        The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers.

        All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 Bar providing higher working pressure (8 Bar) for general use applications.
