MGF
MGF 100/30 Tandem Prime M-HD (c.f.m. @5Bar - 7.7, L/min. @5Bar - 220)
MGF 100/30 Tandem Prime M-HD (c.f.m. @5Bar - 7.7, L/min. @5Bar - 220)
Regular price
£5,509.00
Regular price
£8,807.00
Sale price
£5,509.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

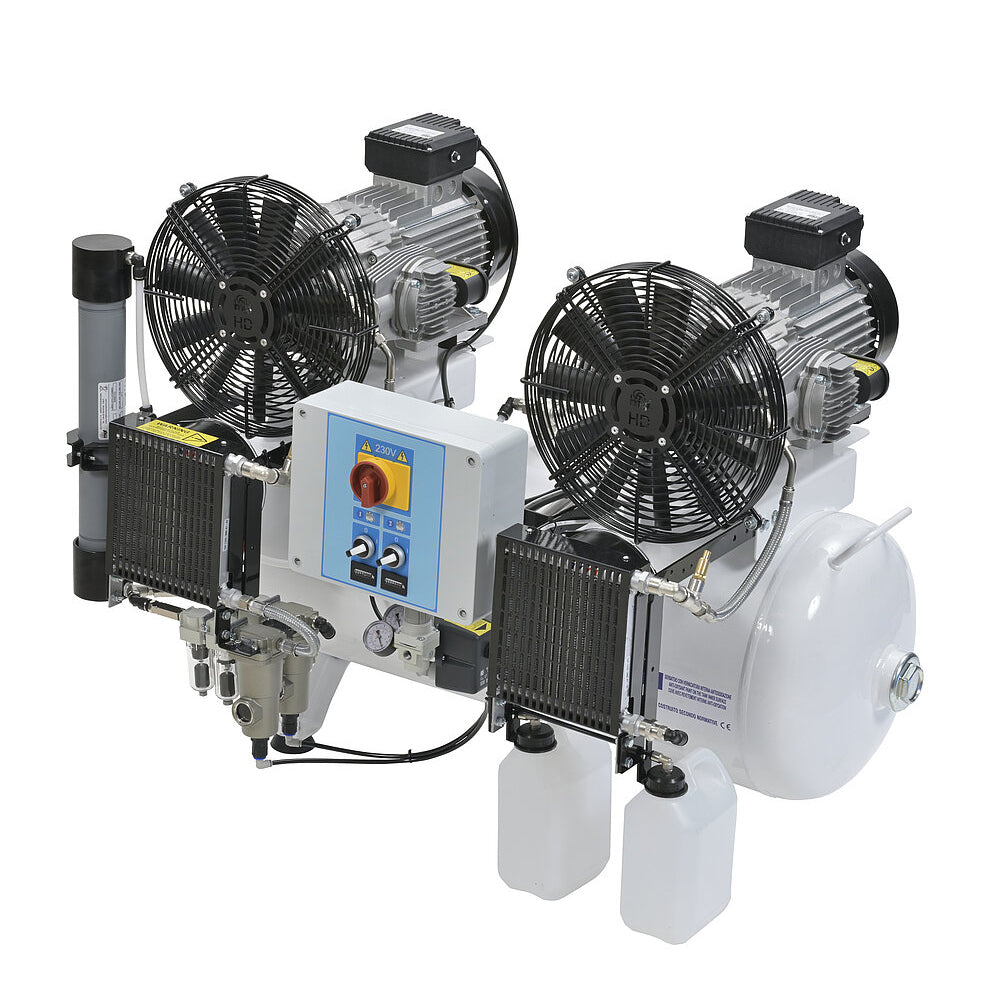

100/50 Tandem Prime M With Dryer Oil-Free, Low Noise Air Compressor
 |
||
 |

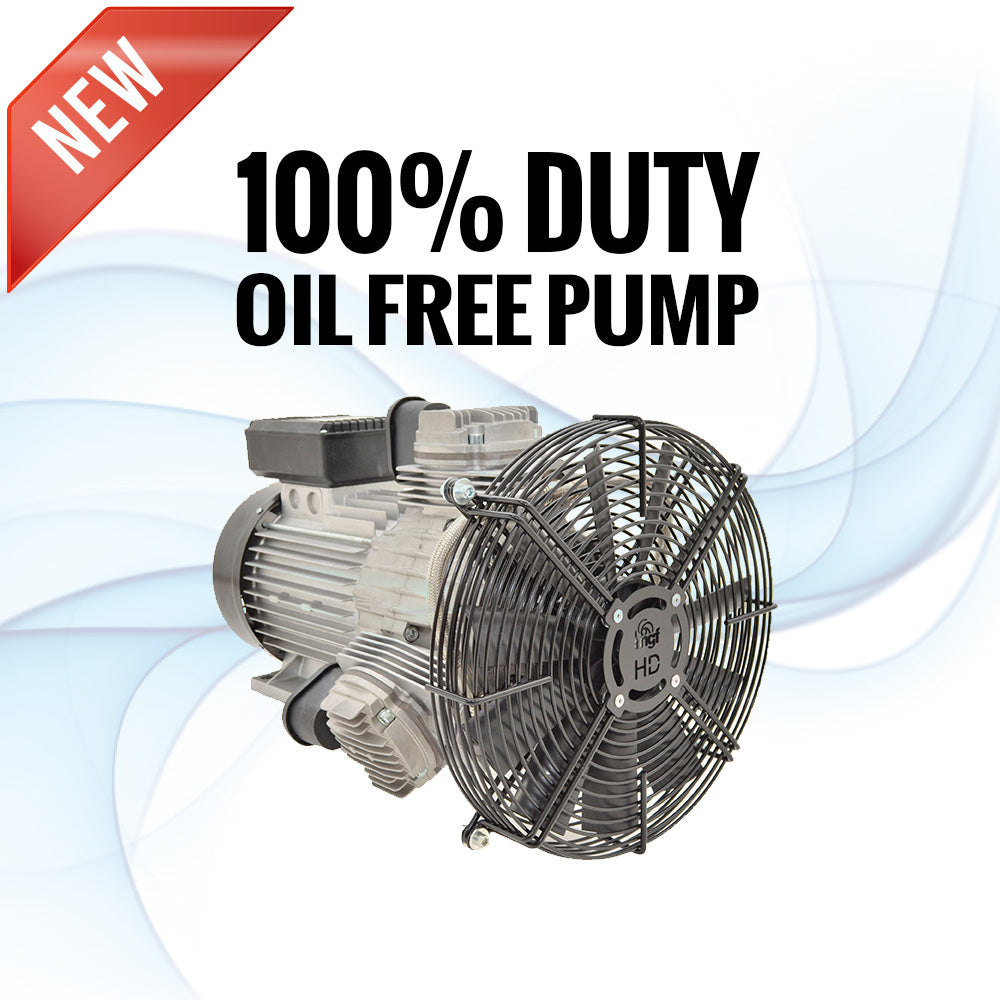

Open Frame and Silenced ModelsThe new 100% heavy duty oil-free pump offers reliability and performance for demanding applications. The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers. All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 bar providing higher working pressure (8 bar) for general use applications. |
|
Air Treatment Features
|
 |
|
Highlights:
- 100% Heavy Duty - Oilfree
- Open-Frame with Dryer
- 2.2+2.2 kW TANDEM - 450 l/min @ 5 Bar
- Internally Coated Receiver - 90 Lt
- Maximum Pressure 10 Bar
- Using PRIME technology: 100% duty, 72 dB(A), and low temperature output
- ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point atmospheric, and Zero oil trace
- Suitable for laboratory and other applications where oil free and air quality is important
- Integrated membrane dryer guaranteeing a dew point of -20°C atmospheric at 5 Bar for HTM 2022 Compliance
SPECIFICATION
Chair- 6
c.f.m @5Bar - 7.7
L/min @5Bar - 220
Hp - 2+2
kW - 2.2 + 2.2
Bar - 10
Psi - 145
dB(A) - 72
Volt - 230
Receiver Size - 90Lt
Product L x W x H (mm) - 1100 x 630 x 810
Kg - 102
