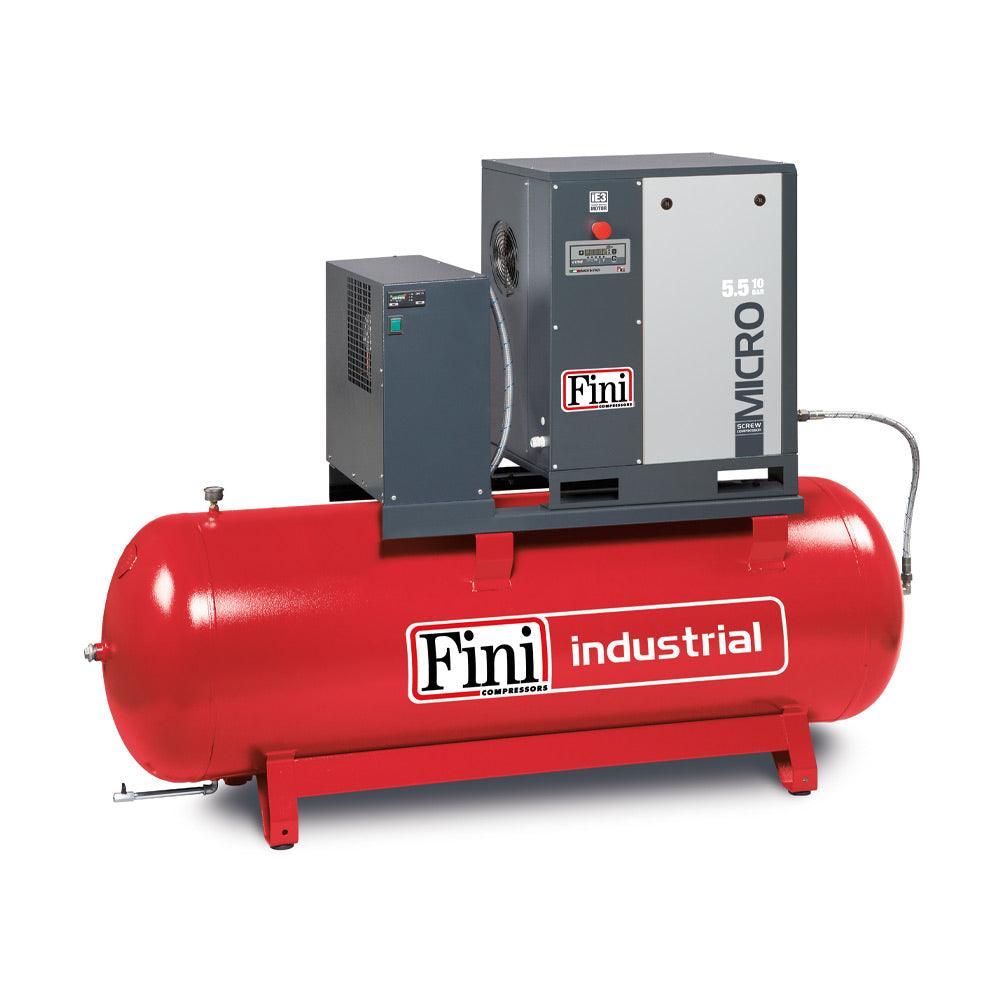

FINI MICRO 5.508-500 ES (c.f.m. - 25.4, L/min. - 720)

FINI MICRO 5.508-500 ES (c.f.m. - 25.4, L/min. - 720)

Regular price £5,274.00
Regular price £8,791.00 Sale price £5,274.00
Sale Sold out
Shipping calculated at checkout.


  • Compact design and very quiet operation - suitable for direct installation in the working environment for maximum convenience and reduced installation.
  • Simple Electro-mechanical control- User friendly automatic control for safe operation and simple access to operating value.
  • Advanced cooling system - The deployment of the thermostatically controlled centrifugal fan reduces noise and saves energy. The large surface area coolers for the air and oil ensures cool operation and lower air outlet temperatures even at higher ambient temperatures.
  • POLY-V belt drive system - Providing three times the service life of normal V belts (TYPICALLY 12000 Hours) with much greater drive efficiency improving output and saving power.
  • IE3 High efficiency Motors - Allowing reduced energy consumption
  • High quality air - The MICRO is available with on board refrigerated dryer (ES models) ensuring dry compressed air benefits your system.
  • Long life and reliability - The MICRO benefits from state of the art manufacturing and over 50 years experience in the production of air compressors with most components designed and manufactured 'in house'
  • Flexible Range - 2.2kW - 5.5kW with freestanding cabinet or with 200Lt air receiver and with on board refrigerated dryer.

kW - 5.5
Hp - 7.5
L/min - 720
m3/h - 43.2
c.f.m - 25.4
Bar - 8
Psi - 116
dB(A) - 64
Outlet G (") - 1/2"
Kg - 277
Receiver Size - 500Lt
Product L x W x H (mm) - 1980 x 600 x 1480

ETMII Installed on models from 4kW to 15kW
  • Four maintenance timers (air cartridge, oil, oil filter, oil separator).
  • Automatic re-start after power failure.
  • Cooling fan temperature settable.
  • Compressor remote start settable.
  • Integrated sequence phase relay.

Controller with multi-function backlight display, the menu is alphanumeric type. In the main screen are displayed:

  • Working pressure (offload/load);
  • Oil temperature;
  • Total working hours;
  • On-load working hours;
  • Compressor status led (stand-by, offload, load);
  • Hours remaining before maintenance.
High efficiency Motors

The design of the MICRO compressors, including the high efficiency IE3 motors, has been fully focused on combining the different components that make up a perfect compressed air installation for a completely integrated, modular and functional system that combines maximum convenience with optimum energy efficiency.
