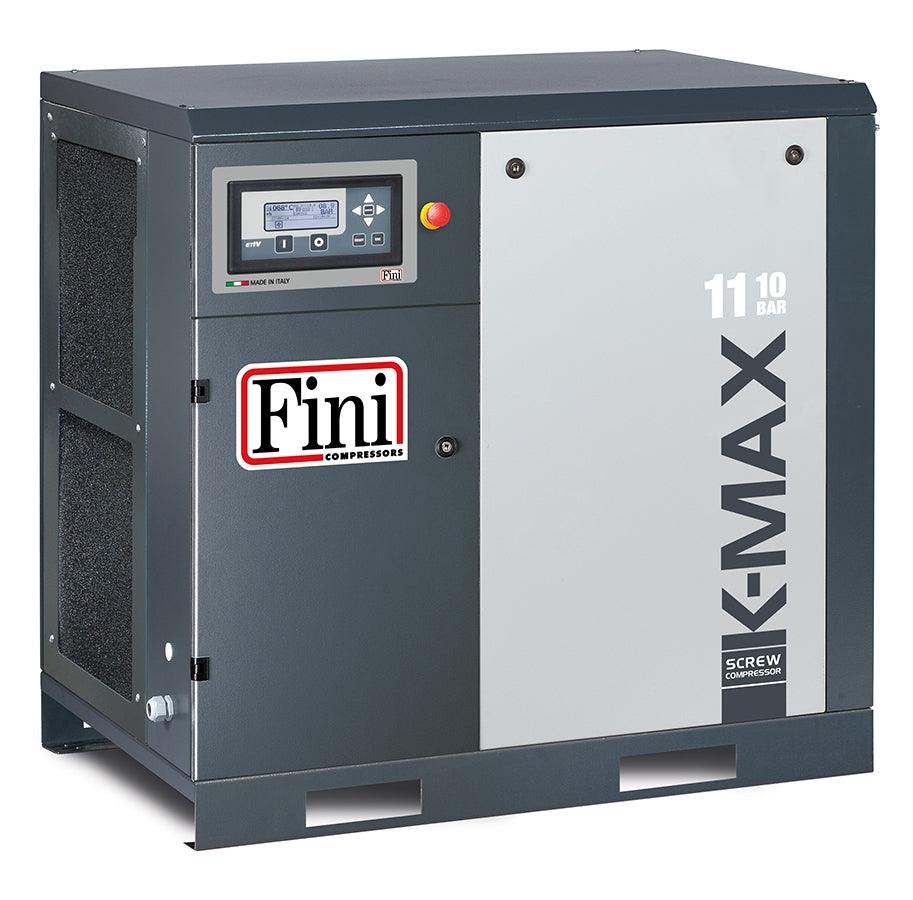

FINI K-MAX 1510 (c.f.m. - 72, L/min. - 2050)

FINI K-MAX 1510 (c.f.m. - 72, L/min. - 2050)

Regular price £5,506.00
Regular price £8,698.00 Sale price £5,506.00
Sale Sold out
Shipping calculated at checkout.


  • Compact design and extremely quiet operation - suitable for direct installation in the working environment with the minimum space requirement, for maximum convenience and reduced installation costs.
  • Controller with multi function backlight display
    • Pressure
    • Oil Temperature
    • Total working hours
    • Compressor status and Hours to next service
  • Advanced cooling system - The deployment of the thermostatically controlled centrifugal cooling fan with the large surface area heat exchanger for the air and oil cooling ensures lower operating temperature and lower air outlet temperatures. The automatic operation saves energy by operating the fan only when required.
  • Robust and reliable - The K-MAX is designed for continuous use in tough conditions ensuring reliability and a very long life.
  • Simple maintenance - All service items are located in one position with easy access reducing costs and down time. The compressor is supplied with Rot Energy PLUS synthetic coolant with longer intervals before changing and reduced friction and wear to components.
  • Cabinet prefiltration - keeps internal components clean for improved reliability, improved cooling and reduced maintenance.
  • IE3 High efficiency Motors - Allowing reduced energy consumption
  • Unique 'ZERO loss' direct drive transmission system - Providing high efficiency with no maintenance requirement, all of the energy from the motor is transferred to the compressor for higher efficiency and lower power consumption.
  • High quality air - The K-MAX is available with fully integrated refrigerated dryer (ES models) ensuring dry compressed air benefits your system.
  • Long life and reliability The K-MAX benefits from state of the art manufacturing and over 50 years experience in the production of air compressors with most components designed and manufactured in-house.
  • Flexible Range - 11kW to 15kW with free-standing cabinet or mounted on 500Lt air receiver and with on board refrigerated dryer.
        kW - 15
        Hp - 20
        L/min - 2050
        m3/h - 123
        c.f.m - 72
        Bar - 10
        Psi - 145
        dB(A) - 68
        Outlet G (") - 3/4"
        Product L x W x H (mm) - 1560 x 700 x 1580
        Kg - 250
        Receiver Size - Floor Mounted
        Product L x W x H (mm) - 1000 x 700 x 1000

        ETIV Advanced electronic controller

        The advanced controller fitted to the VISION range has been specifically developed to guarantee optimum monitoring and regulation of the compressors operation, allowing flexibility and full programming of the complete compressed air station for maximum efficiency and safety.

        Remote monitoring (on demand)

        GSM/GPRS/Ethernet/W-iFi module (for on-line compressor status, remote assistance, connection
        with PC, Smartphone and Tablet, connectivity in a multi compressor station).

        Master/slave function

        It is possible to connect up to 4 compressors for managing the workload in
        such a way to equalize the hours dynamically changing set pressures of the various compressors.

        High energy saving

        The choice of high quality components, combined with our high performance air-ends and Premium Efficiency IE3 motors, ensure reduced power consumption, substantial energy savings and exceptional performance

        High performance direct drive ROTARY SCREW AIR-ENDS

        The Fini FS air ends are entirely designed, produced and tested at our Italian facilities: the special design of the screw profile ensures high performance, low temperature and reduced energy consumption.
