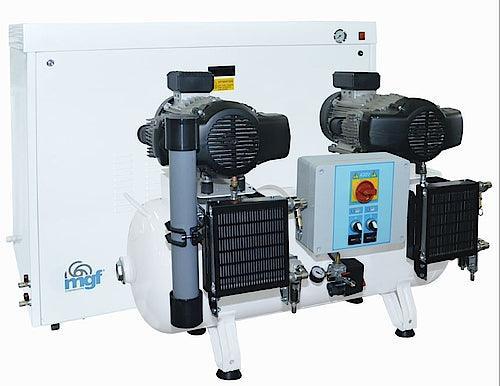

MGF CS100/30 Prime M Tandem Cabinet Silenced With Dryer (c.f.m. @5Bar - 10.8, L/min. @5Bar - 305)

MGF CS100/30 Prime M Tandem Cabinet Silenced With Dryer (c.f.m. @5Bar - 10.8, L/min. @5Bar - 305)

Regular price £6,514.00
Regular price £10,340.00 Sale price £6,514.00
Sale Sold out
Shipping calculated at checkout.

HIGHLIGHTS:

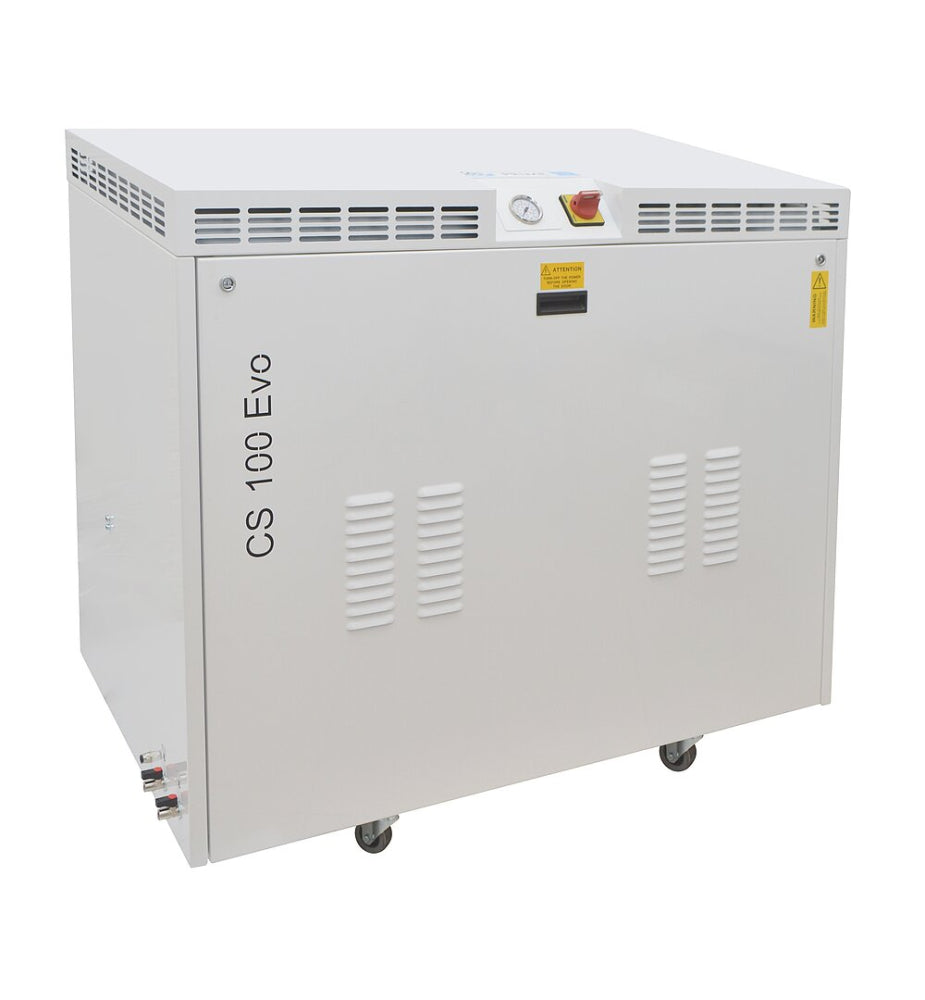

  • In Acoustic Cabinet, with Dryer
  • Tandem 1.5+1.5 kW - 305 l/min @ 5 Bar
  • Internally Coated Receiver - 90 Lt
  • Using PRIME technology: 70% duty, 56 dB(A), and low temperature output
  • Maximum Pressure 10 Bar
  • ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point, and Zero oil trace
  • Integrated membrane dryer guaranteeing a dew point of -20°C at 5 Bar suitable for HTM 2022 Compliance
  • Double filtration system providing an air purity of 0.01 microns
  • Suitable for dental, medical, food processing and laboratory applications
  • All models utilise an after cooler
    SPECIFICATION
    Chairs - 6
    c.f.m @5Bar - 10.8
    L/min @5Bar - 305
    Hp - 2+2
    kW - 1.5+1.5
    Bar - 10
    Psi - 145
    dB(A) - 56
    Volt - 230
    Receiver Size - 90Lt
    Product L x W x H (mm) - 1245 x 725 x 1020
    Kg - 215
