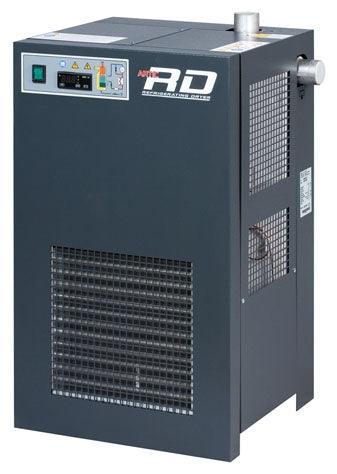

PS 32 Refrigerated Dryer (RD32.A)

PS 32 Refrigerated Dryer (RD32.A)

Regular price £1,328.00
Regular price £2,108.00 Sale price £1,328.00
Sale Sold out
Shipping calculated at checkout.
Fini High performance refrigerated compressed air dryers are ideal for most applications requiring dry compressed air and where the compressed air network is entirely indoors. The aluminium combination heat exchanger reduces the amount of internal pipe connections which results in lower pressure losses and reduced energy consumption. This arrangement also improves reliability as there is a lower risk of leaks. Each model is sized to your system and features simple installation, attractive design and low energy consumption with very low maintenance requirements

The RD series refrigerated dryers are manufactured to the highest quality and utilise advanced design in order to produce a dryer that is effective but also economical and reliable. Suitable for a vast range of industrial and process applications requiring dry compressed air and where the pipe work system is entirely in doors. Typically installed with two coalescing filters to provide compressed air quality ISO 8573.1, 1.4.1


  • Proven high quality and reliable design.
  • Aluminium combination heat exchanger for greater efficiency with fewer pipe joints for enhanced reliability.
  • Very low pressure losses provide greater efficiency and reduced energy consumption.
  • Simple controls with a clear digital display for all operating data.
  • Compact foot print saves space and simplifies installation.
  • RD32a refrigerant.
  • Single phase 230V supply.
  • Maximum pressure 14 Bar (203 psi).
  • Maximum flow 3200 L/min (113 cfm) @ 3ºC dew point.
Volt - 230
kW - 0.48
Max Amp - 3.6
L/min - 3200
c.f.m - 113
Bar - 14
Psi - 203
Outlet G (") - 1 1/4"
Product L x W x H (mm) - 360 x 430 x 770
Kg - 40
Hz - 50
