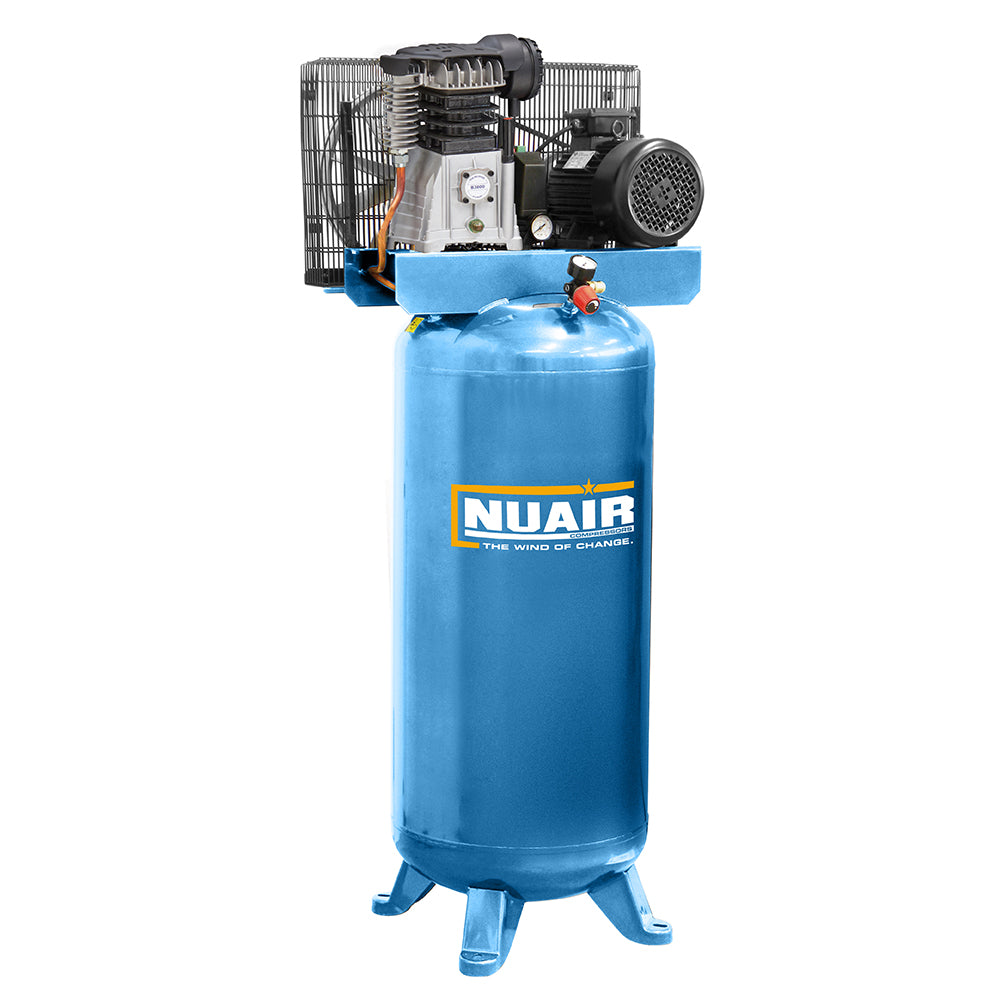

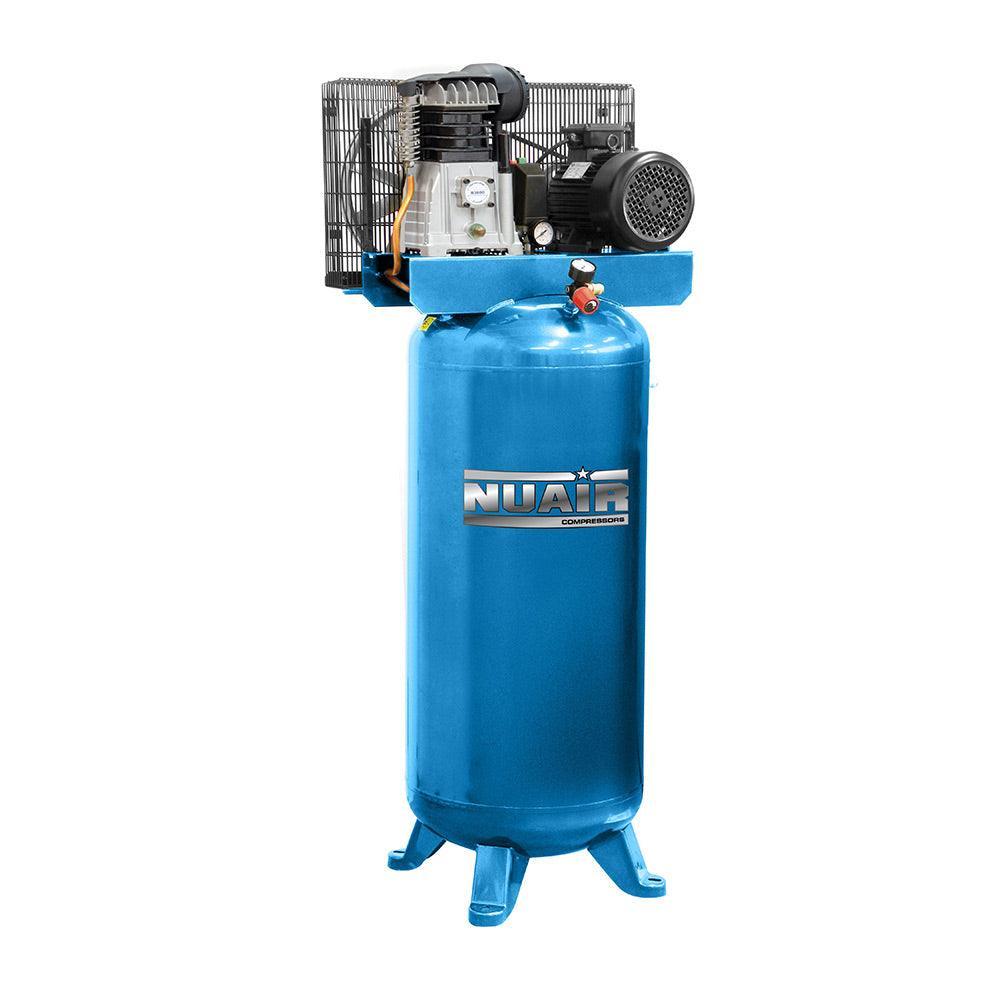

NuAir NB3800B/150V FT3 - Vertical Stationary (c.f.m. - 13.95, L/min. - 395)

NB3800B/150V FT3 - Vertical Stationary 10 Bar, 150Lt Receiver, 400v
The NB3800B/150V FT3 is a popular workshop belt drive compressor suitable for various applications. The proven design ensures reliability and continued performance. Ideal for workshops and applications with access to a Three Phase power supply.

HIGHLIGHTS:

• Fitted with proven B38B single stage lubricated compressor pump unit.
• Advanced cooling system that directs cooling air to the head, valves and after-cooler for lower temperatures.
• Belt driven arrangement allows lower speed operation and reduced noise levels.
• Economical stop/start control.
• Large Vertical 150Lt air receiver to CE standards.
• High quality electric motor, 2.2kW (3Hp) 400v/3/50hz with full overload protection.
• Capacity 395 L/min maximum displacement, pressure 10 Bar (145 psi).
• Two Year Warranty On Pump T&C Apply.
•
