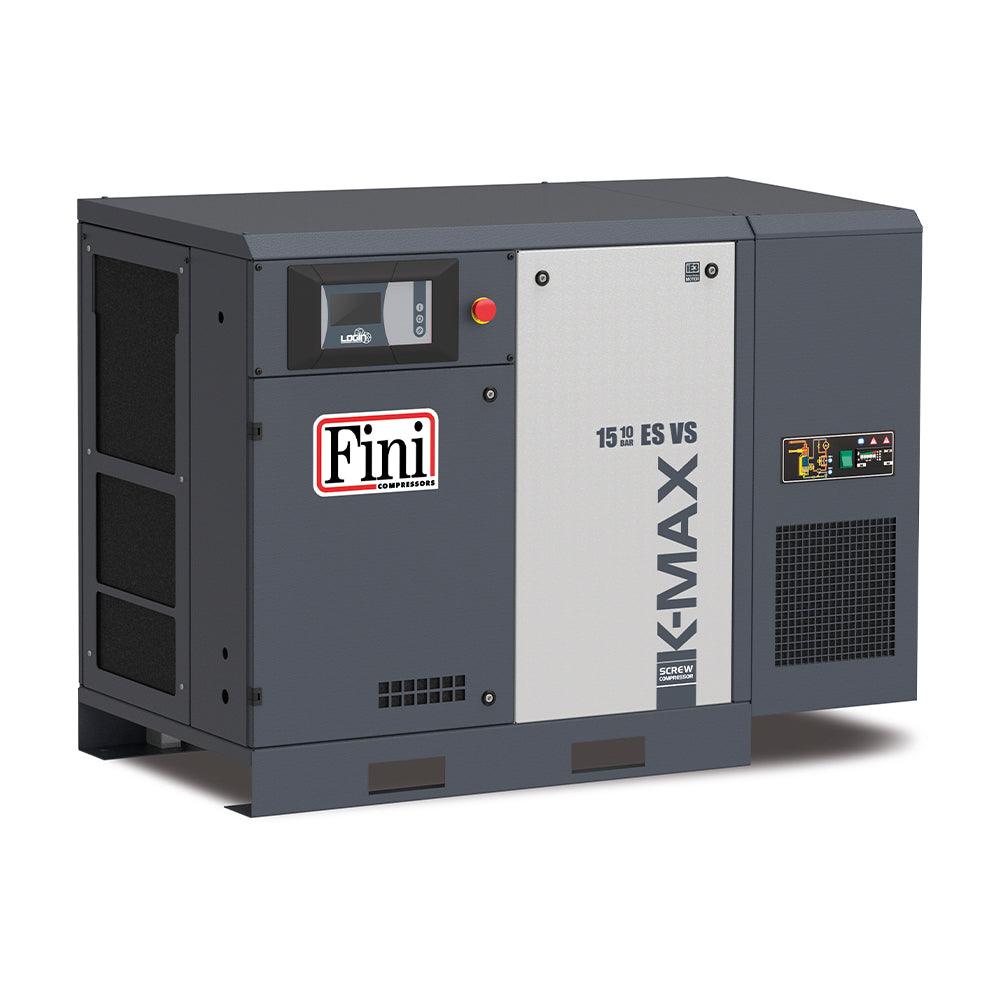

FINI K-MAX 15-08 ES VS (c.f.m. - 85-34, L/min. - 2400-950)

HIGHLIGHTS:

• Compact design and extremely quiet operation - suitable for direct installation in the working environment with the minimum space requirement, for maximum convenience and reduced installation costs.
• New LOGIN Controller - All K-MAX models are equipped with the new LOGIN electronic controller with touch-screen display. In addition to full control of all compressor functions, it also stores the data on a specific memory card, so as to manage multiple compressors (up to 8 units, even different types) and for remote control via SMS Device 2.0 that can be matched to the control unit.
• Advanced cooling system - The deployment of the thermostatically controlled centrifugal cooling fan with the large surface area heat exchanger for the air and oil cooling ensures lower operating temperature and lower air outlet temperatures. The automatic operation saves energy by operating the fan only when required.
• Robust and reliable - The K-MAX is designed for continuous use in tough conditions ensuring reliability and a very long life.
• Simple maintenance - All service items are located in one position with easy access reducing costs and down time. The compressor is supplied with RotEnergy PLUS synthetic coolant with longer intervals before changing and reduced friction and wear to components.
• Cabinet prefiltration - keeps internal components clean for improved reliability, improved cooling and reduced maintenance.
• IE3 High efficiency Motors - Allowing reduced energy consumption
• Unique 'ZERO loss' direct drive transmission system - Providing high efficiency with no maintenance requirement, all of the energy from the motor is transferred to the compressor for higher efficiency and lower power consumption.
• High quality air - The K-MAX is available with fully integrated refrigerated dryer (ES models) ensuring dry compressed air benefits your system.
• Long life and reliability The K-MAX benefits from state of the art manufacturing and over 50 years experience in the production of air compressors with most components designed and manufactured in-house.
• Flexible Range - 11kW to 15kW with free-standing cabinet or mounted on 500Lt air receiver and with on board refrigerated dryer.
•


kW - 15

Hp - 20

L/min - 2400 - 950

m3/h - 144 - 57

c.f.m - 85 - 34

Bar - 8

Psi - 116

dB(A) - 68

Outlet G (") - 3/4"

Product L x W x H (mm) - 1560 x 700 x 1580

Kg - 260

Receiver Size - Floor Mounted

Product L x W x H (mm) - 1360 x 700 x 1000

Optimal control and adjustment

New LOGIN controller All K-MAX models are equipped with the new LOGIN electronic controller with touch-screen display. In addition to full control of all compressor functions, it also stores the data on a specific memory card, so as to manage multiple compressors (up to 8 units, even different types) and for remote control via SMS Device 2.0 that can be matched to the control unit. Read More
THE GRAPH INDICATES THE BREAKDOWN OF THE TOTAL COSTS DURING THE LIFE CYCLE OF A FIXED SPEED COMPRESSOR APPROPRIATE TO FIVE YEARS OF USE.	Compressor Rotation Management Multi Compressor Function Network Connectivity (Optional)
