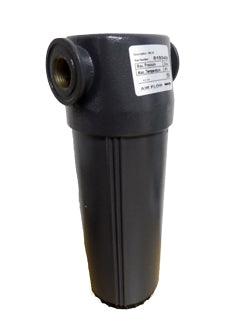

Cyclonic Condensate Separator WS430
Cyclonic Condensate Separator WS430
Regular price
£172.50
Regular price
£437.00
Sale price
£172.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
WS - Cyclonic Condensate Separator
Cyclonic condensate separators, complete with automatic float condensate drain.
Uses a mechanical process to remove up to 60% of water suspended in air, significantly reducing the amount of condensate that flows into tank and dryer. The separators have to be installed before tank or dryer. These separators have been designed for the removal of bulk liquid water and particulate from compressed air and gases. Unique centrifugal action removes contaminants with low-pressure drop for energy savings.
SPECIFICATION
L/min - 36667
m3/h - 2200
c.f.m - 1305
Bar - 16
Psi - 232
Outlet G (") - 3"
Kg - 3.7kg
Product W x H (mm) -200 x 550
Share
No reviews
Uses a mechanical process to remove up to 60% of water suspended in air, significantly reducing the amount of condensate that flows into tank and dryer. The separators have to be installed before tank or dryer. These separators have been designed for the removal of bulk liquid water and particulate from compressed air and gases. Unique centrifugal action removes contaminants with low-pressure drop for energy savings.
