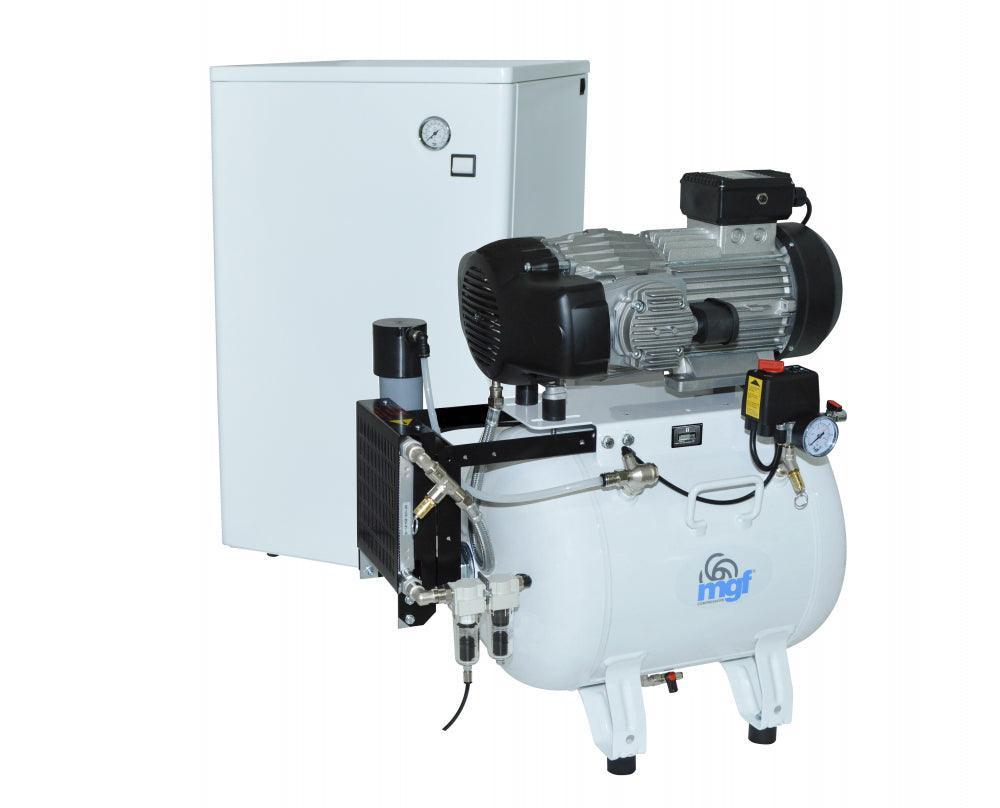

MGF CS 30/15 Prime M Cabinet Silenced With Dryer (c.f.m. @5Bar - 5.4, L/min. @5Bar - 152)

MGF CS 30/15 Prime M Cabinet Silenced With Dryer (c.f.m. @5Bar - 5.4, L/min. @5Bar - 152)

Regular price £3,399.00
Regular price £5,184.00 Sale price £3,399.00
Sale Sold out
Shipping calculated at checkout.

HIGHLIGHTS:

  • In Acoustic Cabinet, with Dryer
  • 1.5 kW - 152 l/min @ 5 Bar
  • Internally Coated Receiver - 40 Lt
  • Using PRIME technology: 70% duty, 53 dB(A), and low temperature output
    (for continuous requirement 60 l/min @ 7 Bar, for higher requirement look at the X-line range)
  • Maximum Pressure 10 Bar
  • ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point, and Zero oil trace
  • Suitable for laboratory and other applications where oil free and air quality is important
  • Integrated membrane dryer guaranteeing a dew point of -20°C at 5 Bar for HTM 2022 Compliance
  • Double filtration system providing an air purity of 0.01 microns
    SPECIFICATION
    Chairs - 3
    c.f.m @5Bar - 5.4
    L/min @5Bar - 152
    Hp - 2
    kW - 1.5
    Bar - 10
    Psi - 145
    dB(A) - 53
    Volt - 230
    Receiver Size - 40Lt
    Product L x W x H (mm) - 490 x 720 x 890
    Kg -98
