Coltri ERGO 280 DY FA Yanmar Diesel 300 Bar, Fully Automatic (c.f.m. - 9.5, L/min. - 270)

ERGO 270 DY Diesel 300 Bar With Electric Start & Battery (Was MCH16)

High pressure breathing air compressors in both portable and cabinet versions. Ideal for the charging of BA cylinders and for paint ball and other leisure activities as well as a variety of industrial applications. Operating at 232 Bar  The range comprises engine driven and electric versions with single phase (230/1/50hz), three phase (400/3/50hz) motors. All models feature low speed compressor operation for added durability and lower noise levels. Range: 2.2kW to 15kW, 100 L/min to 625 L/min.

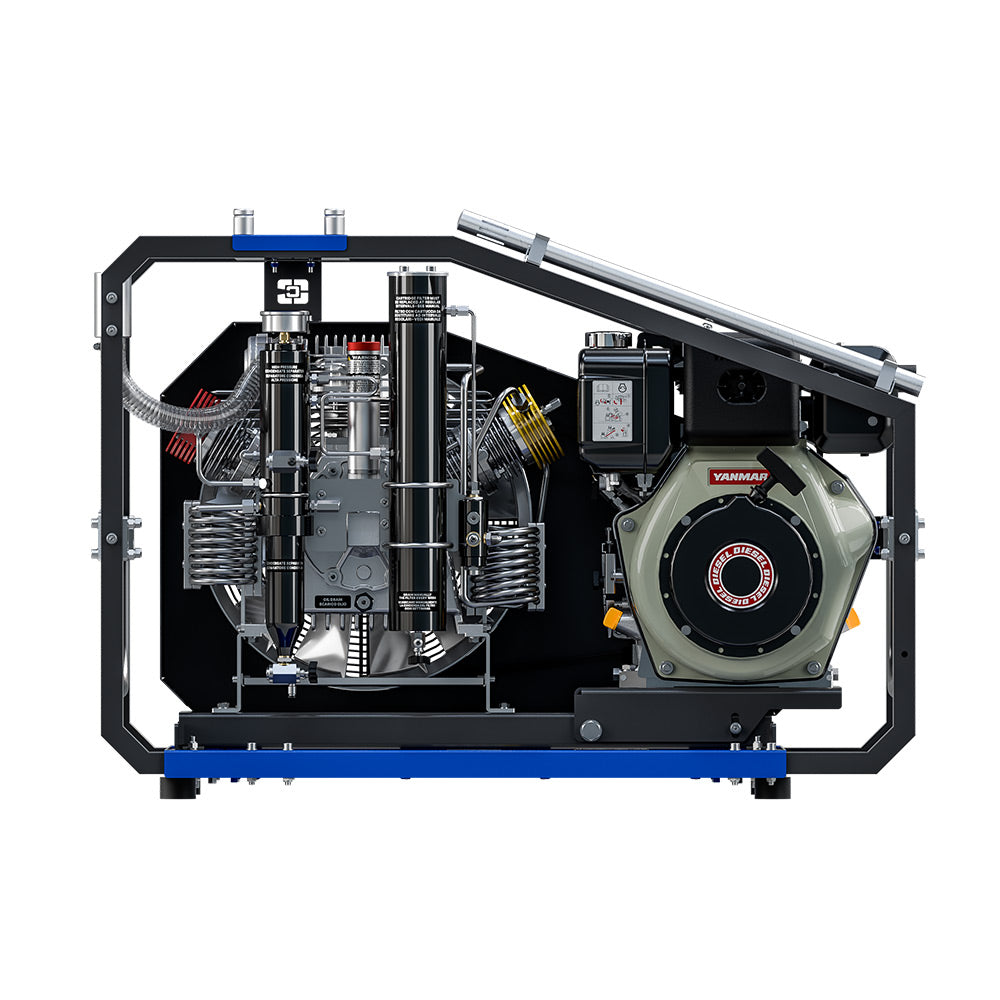

ERGO 270 DY, this Diesel unit has a charging rate of 270 L/min (9.1 CFM), capable of filling a 10Lt cylinder from empty to 200 Bar in 7.1 minutes.

Practical and lightweight, ERGO combines robustness and great operational efficiency. Equipped with two different pumping units, it can be powered by electric motors or Honda petrol/Kohler diesel engines. It is equipped with a monitoring panel complete with interstage pressure gauges, AutoStop with adjustable pressure switch, automatic condensate drain and rotation direction control. There are two connections for high pressure hoses and a Maxifilter filter system. The remote charging panel is available as an option.

• Available In 300 Bar

STANDARD EQUIPMENT

2 Filling Connection

2 Filling Hose 120cm Length

Pressure Maintaining Valve (PMV)

Maxifilter

Pressure Gauges

Thermostat

Pressure Switch Auto Shut Off

Oil level Switch/Auto Shut Off

Electric Start & Battery

Specification
