CleanAIR

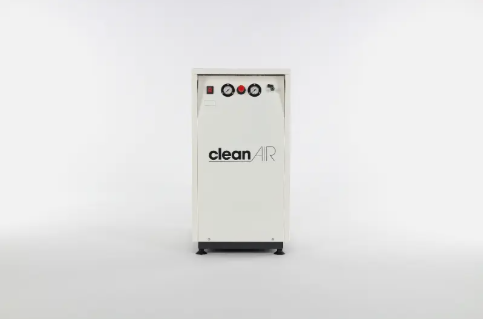

CleanAIR CLR 20/30 S T UK
CleanAIR CLR 20/30 S T UK
Couldn't load pickup availability
CLR 30 LT - Clean Air
Our CleanAir range is ideally suited to Dental or
Laboratory applications which demand Oil Free Air to
ensure no contamination of the compressed air and
peace of mind to the user. With Epoxy coated air receivers
both internally and externally you can be assured of no
contamination by corrosion and extended lifetime of the
air receiver. Selecting a model with a desiccant air dryer
fitted for removal of water down to a -40°C pressure
dewpoint will ensure no bacterial growth can occur and
ensures compliance with the requirements of HTM2022
for Dental Applications. The direct drive low noise pump
unit is fairly quiet to start with however if noise is an issue
and the unit needs to be located close to the point of use
then choose an enclosed cabinet silenced model which
brings the noise level down to conversation levels.
Technical Specifications
Max Pressure (Bar) | 8 Bar |
Max Pressure (Psi) | 116 PSI |
Pump speed | 1400 Rpm |
Vessel size (lt) | 30 Liter |
Vessel size (gal) | 7.9 Gal |
Configuration | Stationary |
Air Displacement (l/min) | 350 l/min |
Air Displacement (cfm) | 12.4 Cfm |
Lubrication | Oil-free |
Oil capacity | n.a. Liter |
Pump Element | CLR20 |
Motor (hp) | 2 Hp |
Motor (kw) | 1.5 kW |
Supply voltage | 230 V |
Frequency | 50 Hz |
Number of phases | 1 |
Noise Level (LPA) | 64 dB(A) |
Noise Level (LWA) | 84 dB(A) |
SmartInventory class | Available on request |
Stackability | Yes |
