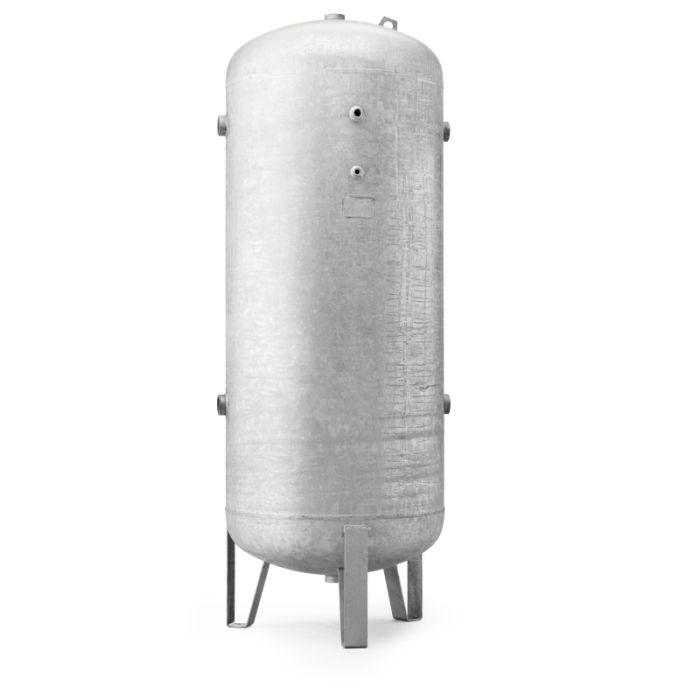

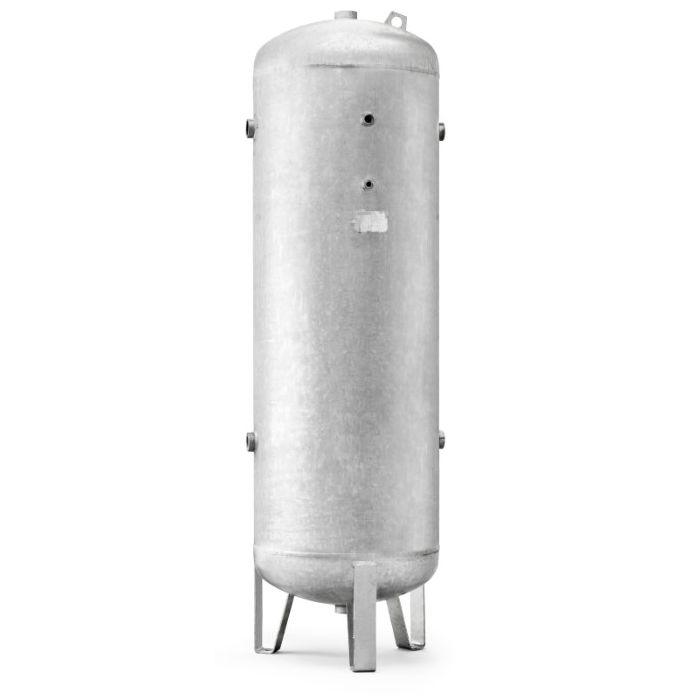

ABAC Vertical Air Receiver 5000Ltr - Galvanized

ABAC Vertical Air Receiver 5000Ltr - Galvanized

Regular price £9,079.00
Regular price £20,923.20 Sale price £9,079.00
Sale Sold out
Shipping calculated at checkout.

Vertical Air Receiver 5000 Ltr 11.5bar Galvanized ( * No Connection Kit )

Suitable for any application using compressed air.

• Storage function in order to handle high air consumption.
• Stabilize pressure peaks and provide a stable air flow
• Perform a preliminary separation and removal of condensate.

Moreover, installing an air receiver allows you toavoid the following risks:

• Unstable pressure peaks
• Multiple start/stop of the compressor
• More condensate risk

Galvanization is used to protect steel against corrosion. The process itself is simple: the vessel is completely submerged in a zinc liquid bath. As a result, the zinc coating perfectly adheres to the entire surface of the tank, ensuring full protection of the steel.

How to select the size of my receiver?

There is no one rule that fits all as some applications require larger air receivers because of the process. However, two rules of thumb that can help to finetune:

• Your air receiver capacity should be at least 1/4 of your free air delivery expressed in m³/min.
• Base yourself on the compressor’s motor power and calculate the capacity (Motorpower in HP x 30).

Example: If you install a 10HP compressor, your receiver capacity should be minimally 300 Ltr.

Correctly sizing your air receiver brings following benefits for your compressors’ operations:

• Less waste during unloading period
• Overall smoother operation
• Avoid mechanical stress on several components

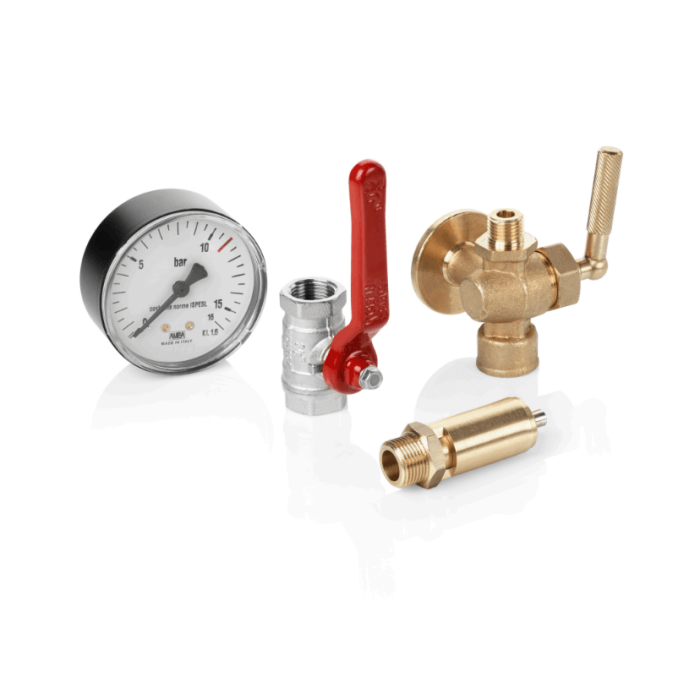

* Please see under Air Installation (vertical air receiver kits) if a connection kit is required.

Technical Information
Item number 4101000942

Air receiver capacity (Lt) 5000
Compressed air connection 3"
Max Working Pressure (Bar) 11.5
Diameter (mm) 1450
Brand ABAC
Used for Air treatment
