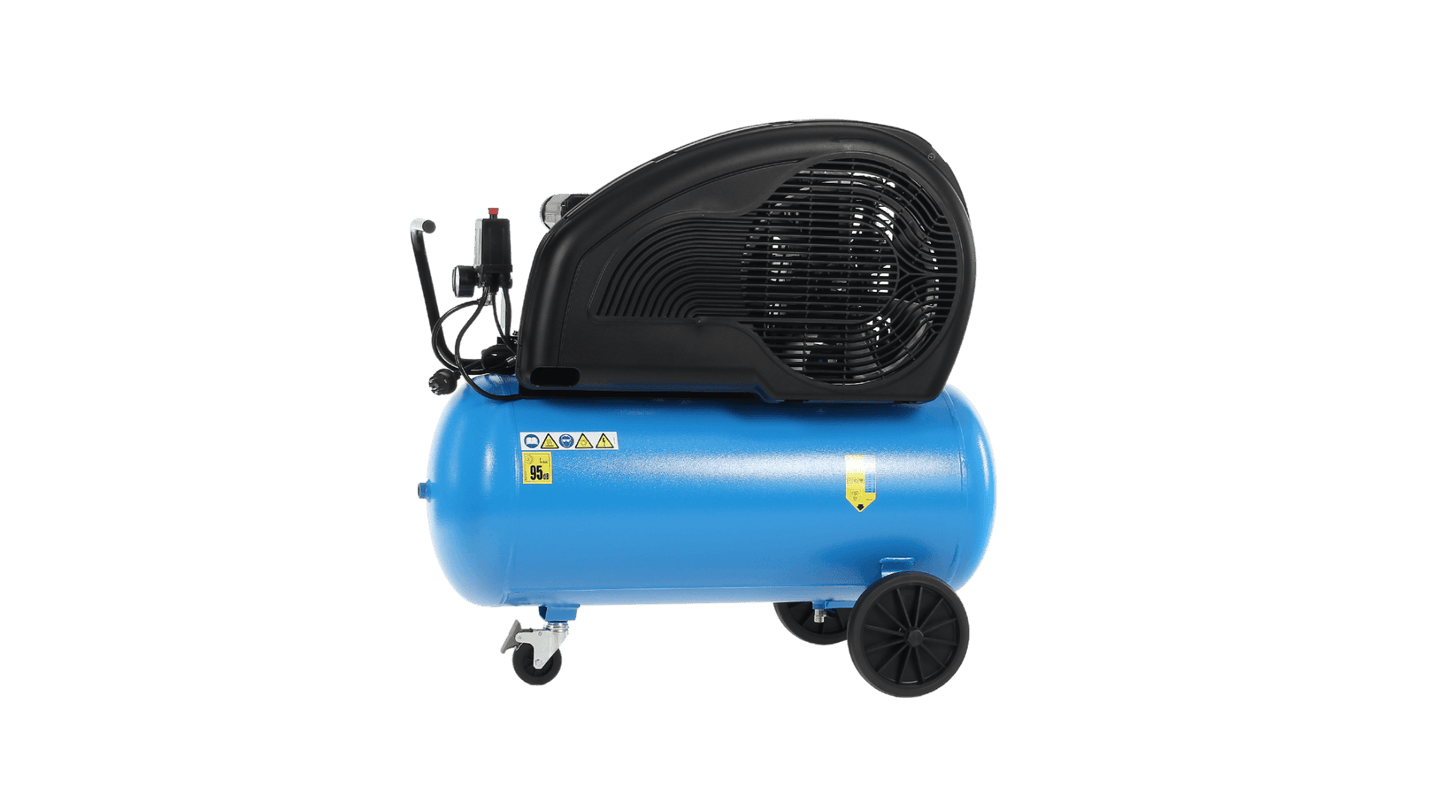

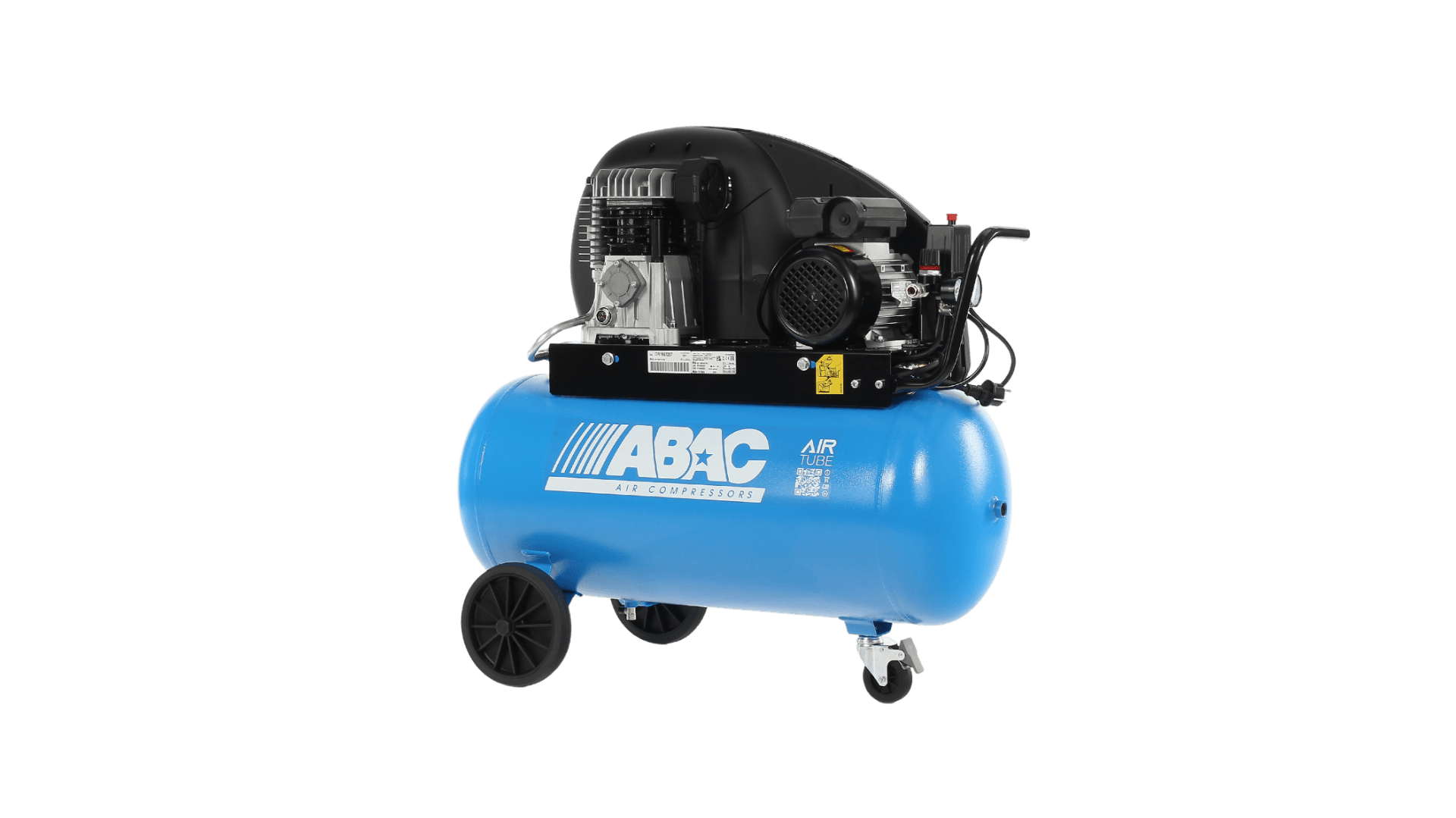

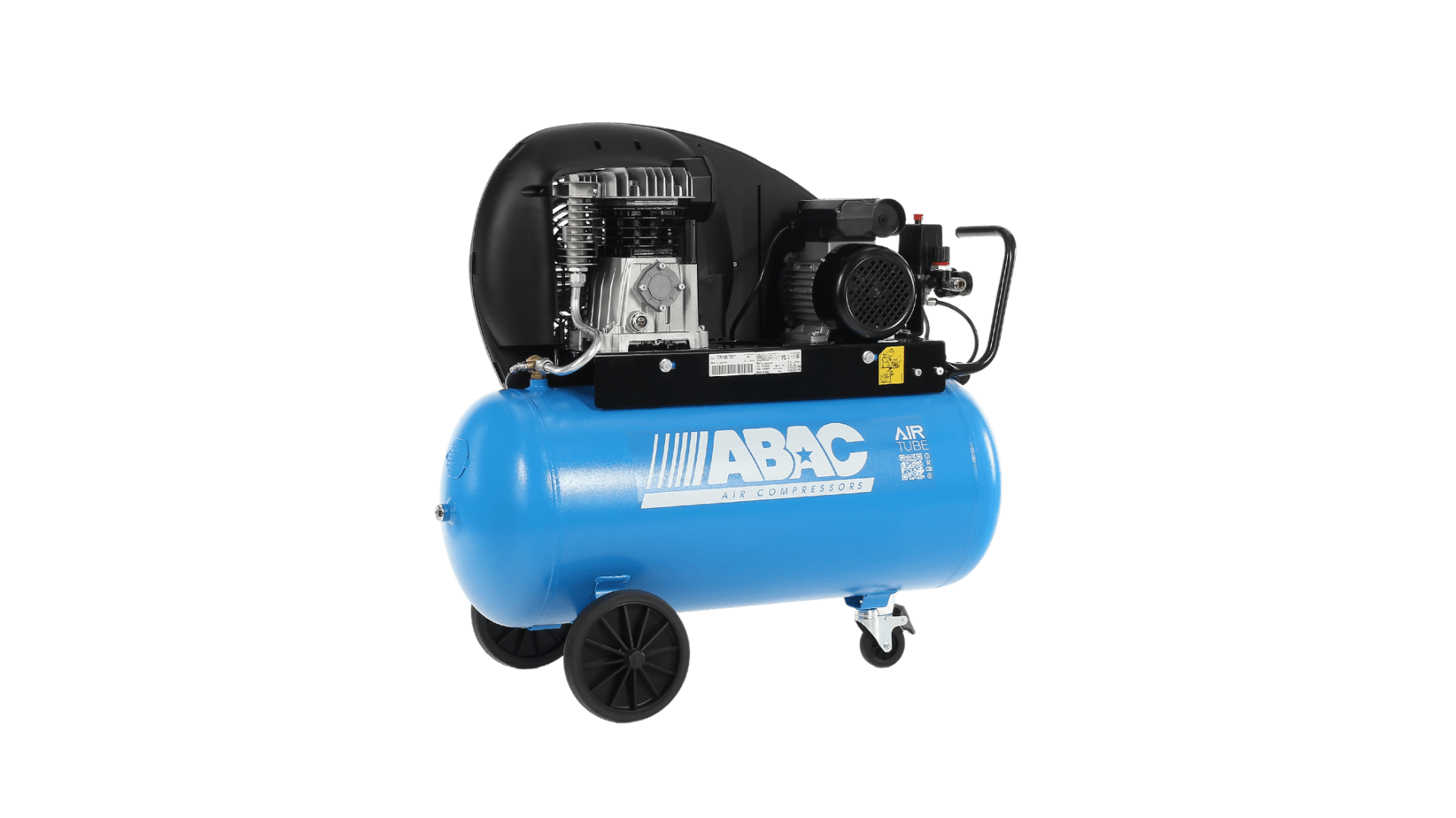

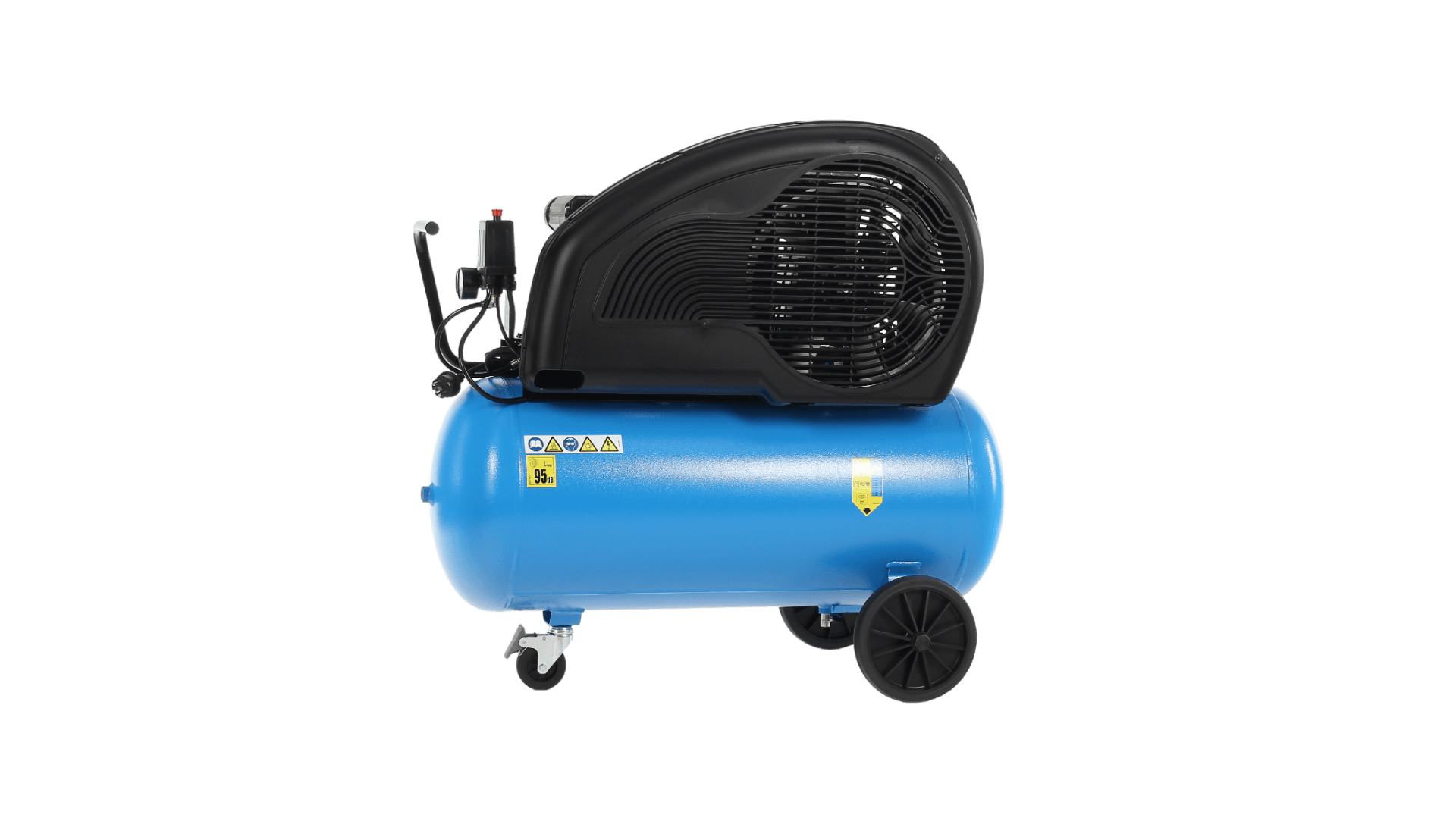

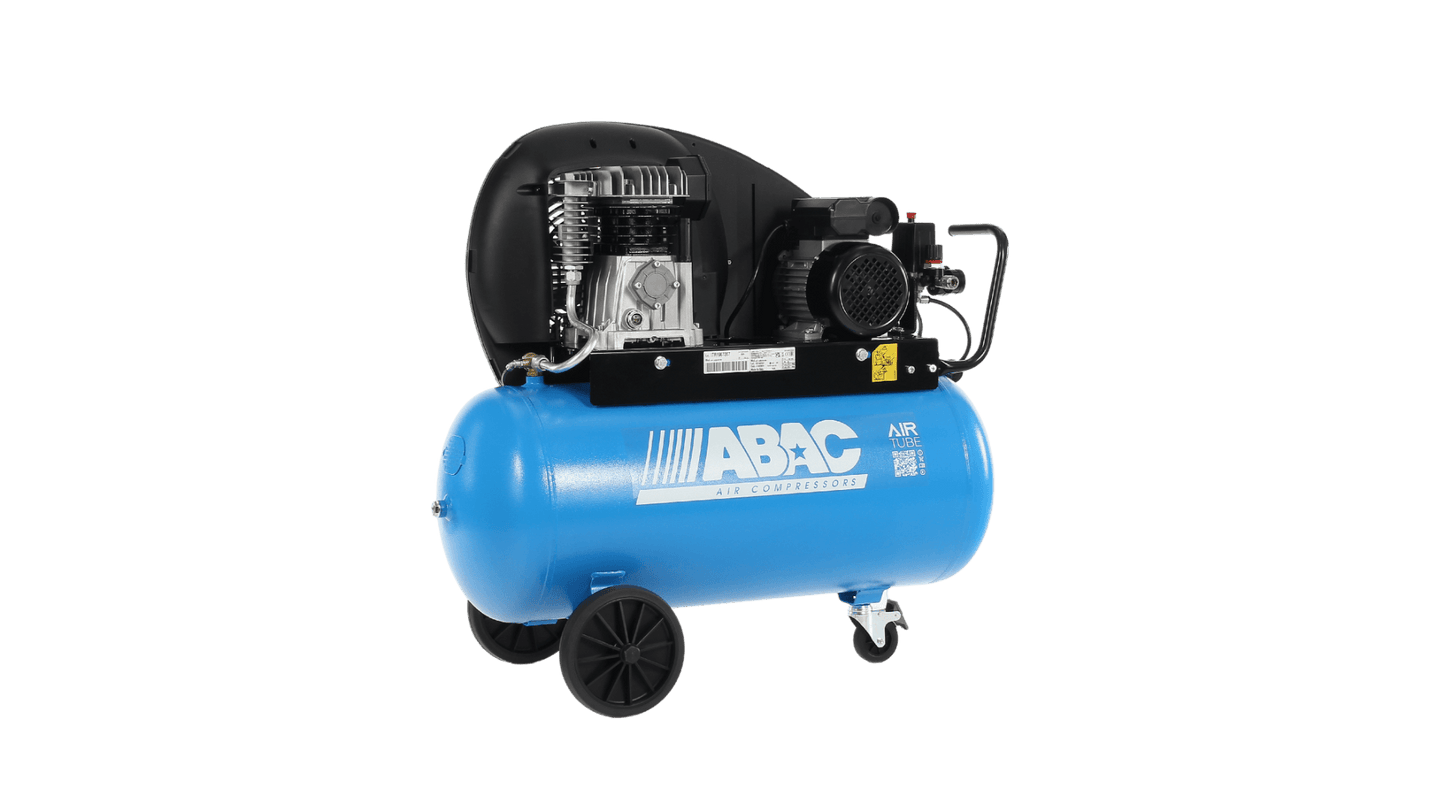

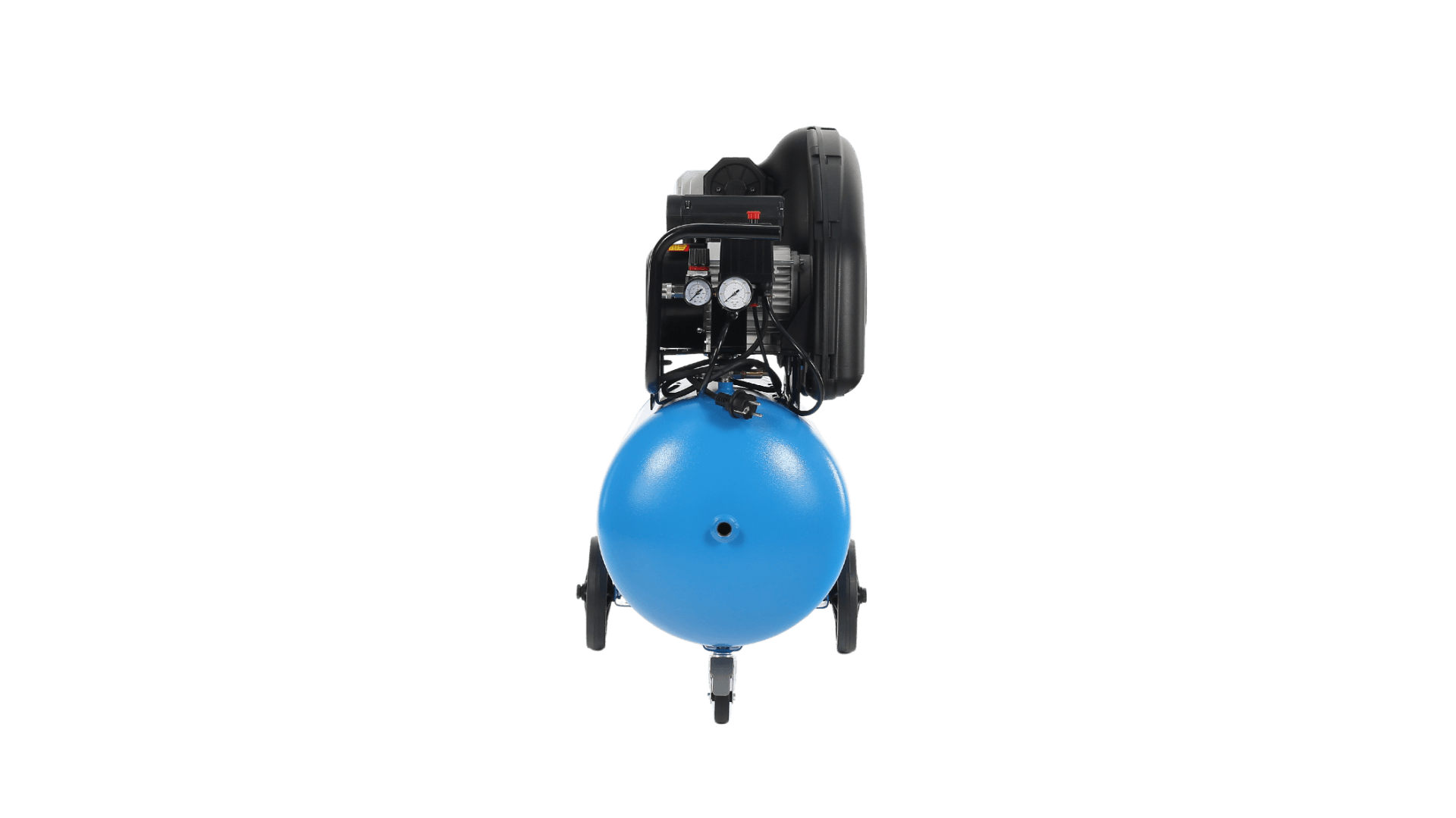

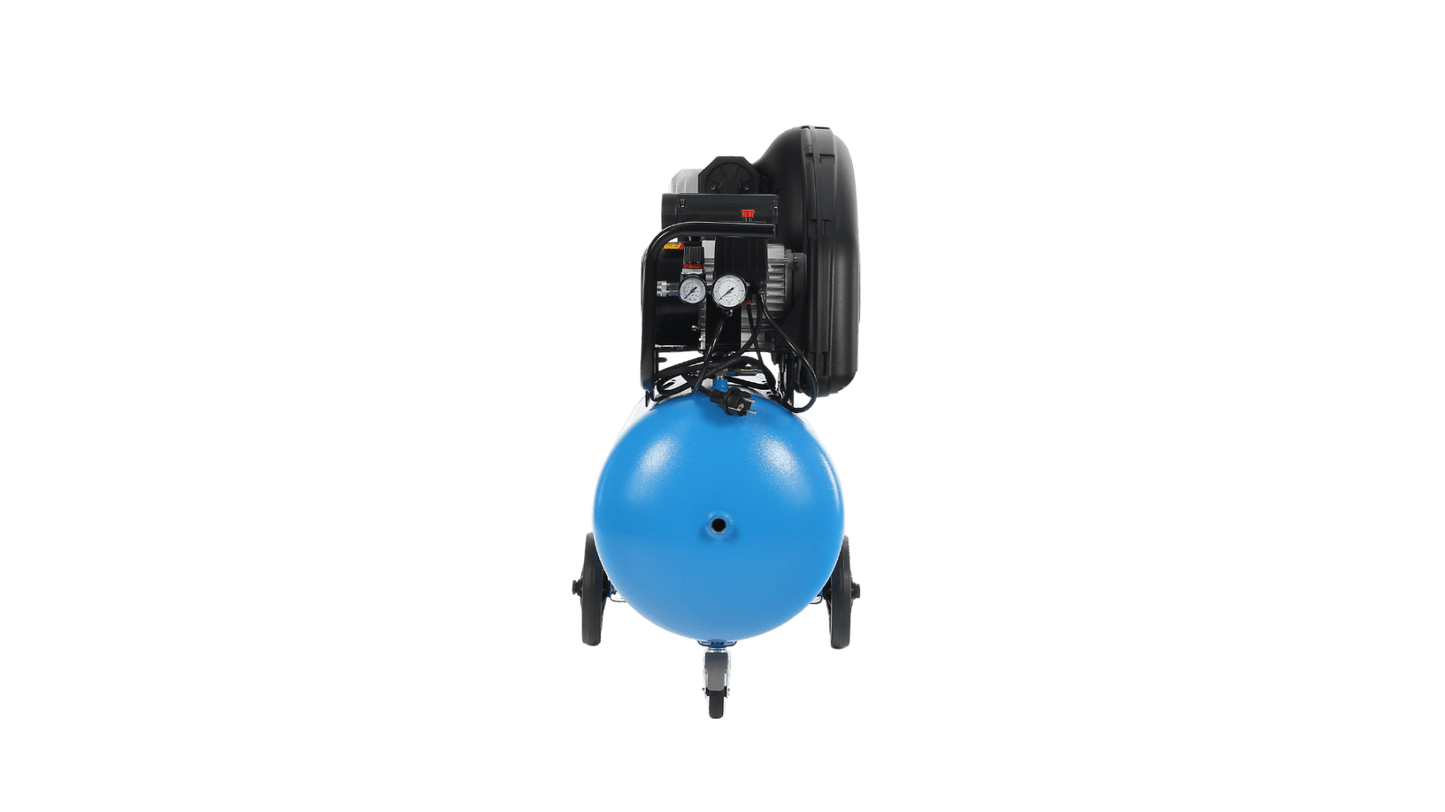

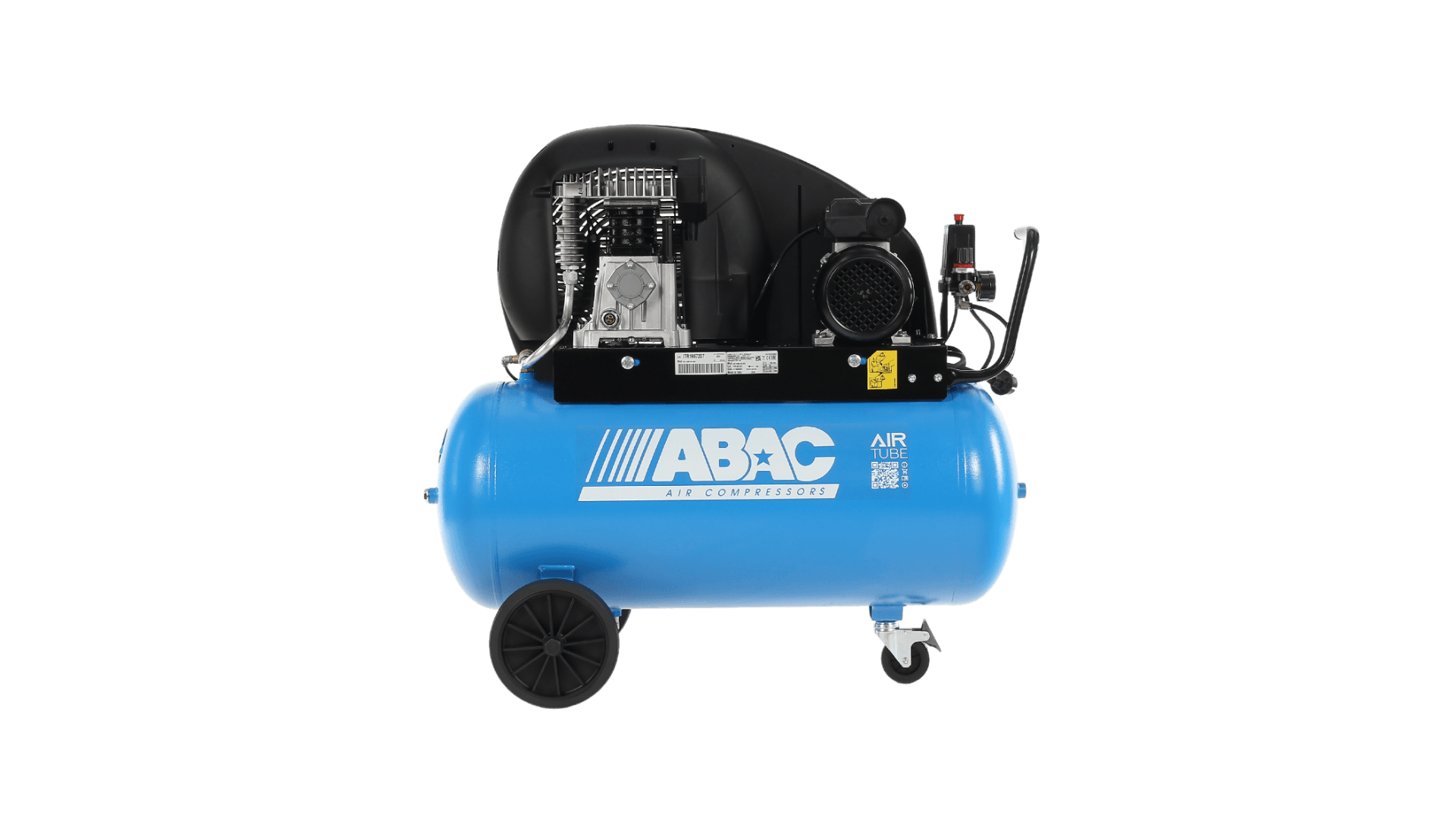

ABAC Pro A39B 90 CM3 3Hp, 90Ltr (230V) (c.f.m. - 14, L/min. - 396)

ABAC Pro A39B 90 CM3 3Hp, 90Ltr (230V) (c.f.m. - 14, L/min. - 396)

Regular price £605.00
Regular price £1,210.00 Sale price £605.00
Sale Sold out
Shipping calculated at checkout.

PRO A39B 90 CM3 3Hp, 90Ltr (230v)

PRO Series Single stage belt driven piston compressors

ABAC PRO professional single stage piston compressors combine high user comfort with great durability and efficient performance. All the units are equipped with the best belt guard available, providing an optimal air flow over the pump. The pumps are running at low speed and all come with aftercoolers to reduce operating temperatures even more than ever before.
All machines have the maximum number of feet with rubber bumpers or lockable pivot wheels, providing the safest and best stability possible. The range offers different power sizes and tank capacities while all models are built with the highest care for detail and quality.

Features and Benefits :-

  • Ergonomically designed belt guards providing optimal cooling
  • Cast Iron cylinder blocks fitted as standard
  • Aftercoolers fitted as standard for reduced operating temperatures
  • Low operating speed for increased longevity
  • Twin pressure regulators fitted as standard for multi simultaneous tool operation (portable models only)
  • Additional safety thanks to the lockable swivel wheels (portable models only)
  • Ergonomic handle with rubber grip for increased user comfort
  • Motor overload switches fitted standard for increased protection (230v models only)
  • User-friendly Clear oil level indicators
  • Large and easy to operate drain valve
Technical Information
Item number 4116025017
Product Name PRO A39B 90 CM3 UK
Oil Free No
Air Displacement (cfm) 13.8
Free Air Delivery (cfm) 10.1
Air hose attachment (inch) 1/2"
Suitable for Professional
Horsepower (HP) 3
Power (kW) 2,2
Brand ABAC
Air receiver capacity (Lt) 90
Oil volume (lt) 0,89
Starter Direct on line, Electric
Revolutions per minute (RPM) 1050
Type 1 stage, Belt driven
Number of cylinders 2
Weight (kg) 72
Width (mm) 1180
Mobility Mobile
Depth (mm) 460
Height (mm) 930
Voltage (V) 230
Integrated dryer No
Frequency (Hz) 50
Phase 1
Maximum air pressure (bar) 10
Cooling type Air
Sound level LpA at 4m distance 73
Sound level LwA 93
