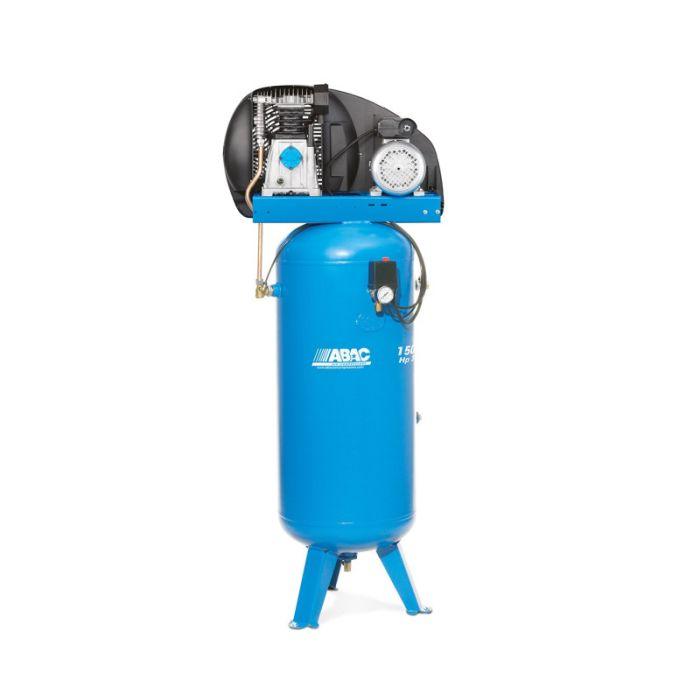

ABAC Pro A39B 150 VM3 3Hp, Vertical 150Ltr (230V) (c.f.m. - 14, L/min. - 396)

ABAC Pro A39B 150 VM3 3Hp, Vertical 150Ltr (230V) (c.f.m. - 14, L/min. - 396)

Regular price £1,349.00
Regular price £2,578.80 Sale price £1,349.00
Sale Sold out
Shipping calculated at checkout.

PRO A39B 150 VM3 3Hp, 150Ltr (230v)

PRO Series Single stage belt driven piston compressors

ABAC PRO professional single stage piston compressors combine high user comfort with great durability and efficient performance. All the units are equipped with the best belt guard available, providing an optimal air flow over the pump. The pumps are running at low speed and all come with aftercoolers to reduce operating temperatures even more than ever before.
All machines have the maximum number of feet with rubber bumpers or lockable pivot wheels, providing the safest and best stability possible. The range offers different power sizes and tank capacities while all models are built with the highest care for detail and quality.

  • Air Displacement (cfm): 14
  • Horsepower (HP): 3
  • Air receiver capacity (Lt): 150

Features and Benefits :-

  • Ergonomically designed belt guards providing optimal cooling.
  • Cast Iron cylinder blocks fitted as standard
  • Aftercoolers fitted as standard for reduced operating temperatures
  • Low operating speed for increased longevity
  • Twin pressure regulators fitted as standard for multi simultaneous tool operation (portable models only)
  • Additional safety thanks to the lockable swivel wheels (portable models only)
  • Ergonomic handle with rubber grip for increased user comfort.
  • Motor overload switches fitted standard for increased protection (230v models only)
  • User-friendly Clear oil level indicators.
  • Large and easy to operate drain valve
Technical Information
Item number 4116025019
Product Name PRO A39B 150 VM3
Oil Free No
Air Displacement (cfm) 13.8
Free Air Delivery (cfm) 10.1
Product category Piston compressors
Air hose attachment (inch) 1/2"
Suitable for Professional
Horsepower (HP) 3
Power (kW) 2.2
Brand ABAC
Air receiver capacity (Lt) 150
Oil volume (lt) 0,89
Starter Direct on line, Electric
Revolutions per minute (RPM) 1050
Type 1 stage, Belt driven
Number of cylinders 2
Weight (kg) 160
Width (mm) 850
Mobility Stationary
Depth (mm) 970
Height (mm) 1950
Voltage (V) 230
Integrated dryer No
Frequency (Hz) 50
Phase 1
Maximum air pressure (bar) 10
Cooling type Air
Sound level LpA at 4m distance 76
Sound level LwA 96
Used for Piston compressor
