A-DRY06 Adsorption Dryer (c.f.m. - 4)

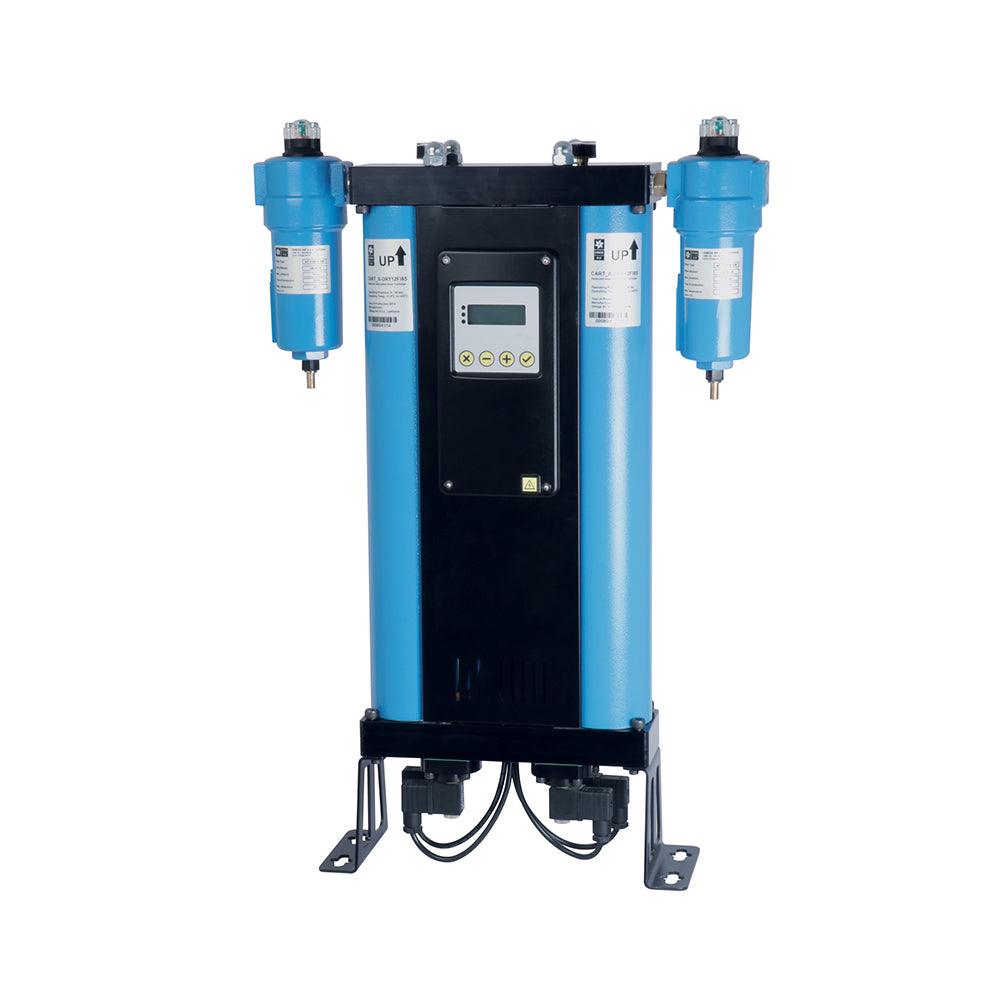

Introducing the A-DRY06 Adsorption Dryer (c.f.m. - 4)

Using an alternating dual-column system, the A-DRY06 Adsorption Dryer (c.f.m. - 4) lowers the dew point to -40°C, separating water vapour from compressed air. The column system works by alternating pressure-swing cycles between two desiccant beds. This helps to ensure non-stop moisture separation without causing any downstream pressure drops.

Despite its complex workings, the A-DRY06 Adsorption Dryer (c.f.m. - 4) is simple to use, with a user-friendly controller and LED display. Weighing just 10.5 kg, the dryer is extremely lightweight, making it perfectly portable for use in multiple settings. The settings in which it excels the most are medical/dental, food and beverage processing, and electronics.

Product Highlights

❖Alternating Twin Column System
The twin column system on the A-DRY06 Adsorption Dryer (c.f.m. - 4) alternates pressure-swing columns seamlessly between two desiccant beds. This ensures non-stop moisture prevention without any drop in downstream pressure.

❖Very Low Pressure Dew Points
The A-DRY06 Adsorption Dryer (c.f.m. - 4) achieves standard pressure dew points of -40°C, but can be adjusted to achieve dew points of -25°C down to -70°C. This makes it perfect for a variety of applications that require different moisture levels.

❖Spring-Loaded Desiccant Bed
The A-DRY06 Adsorption Dryer (c.f.m. - 4) integrates heavy-duty stabilisation springs inside each of its two columns. They will apply constant pressure to prevent any bed movement, air channeling, and desiccant abrasion.

❖Dual Smart Operating Modes
The setup features an intelligent controller setup which supports an extended 10 minute fixed timer cycle. The A-DRY06 Adsorption Dryer (c.f.m. - 4) is also capable of using a variable dew-point-dependent mode that reduces average purge air consumption below 3%.

Product Specifications

❖L/min: 113
❖C.f.m: 4
❖Bar: 4 - 16
❖PSI: 58 - 232
❖Outlet G (“): 3/8
❖Motor Volt: 230V 50/60 Hz
❖Weight: 10.5kg
❖Product L x W x H (mm): 130 x 480 x 520

FAQs A-DRY06 Adsorption Dryer (c.f.m. - 4)

How does the A-DRY06 Adsorption Dryer (c.f.m. - 4) regenerate its desiccant material?

The A-DRY06 Adsorption Dryer (c.f.m. - 4) uses a heatless, pressure-swing adsorption method to regenerate its desiccant material. One tower filters and dries the incoming compressed air at high pressure, and a small portion of that dried air is then expanded and passed through the second tower.

Does the A-DRY06 Adsorption Dryer (c.f.m. - 4) require filtration?

Yes, coalescing pre-filtration is mandatory to protect the desiccant from liquid water, oil aerosols, and solid particles. A particulate air filter is also recommended to trap microscopic dust from entering your downstream equipment.

What pressure dew point can the A-DRY06 Adsorption Dryer (c.f.m. - 4) achieve?

The standard configuration of the A-DRY06 Adsorption Dryer (c.f.m. - 4) delivers a pressure dew point of -40°C. For critical or specialised applications, the tower can be configured to achieve alternate dew points of -25°C and -70°C.

How much compressed air does the A-DRY06 Adsorption Dryer (c.f.m. - 4) consume for its purging process?

In its standard mode, the unit uses an average purge air consumption rate of 15-20% of its nominal capacity to regenerate the offline tower.
