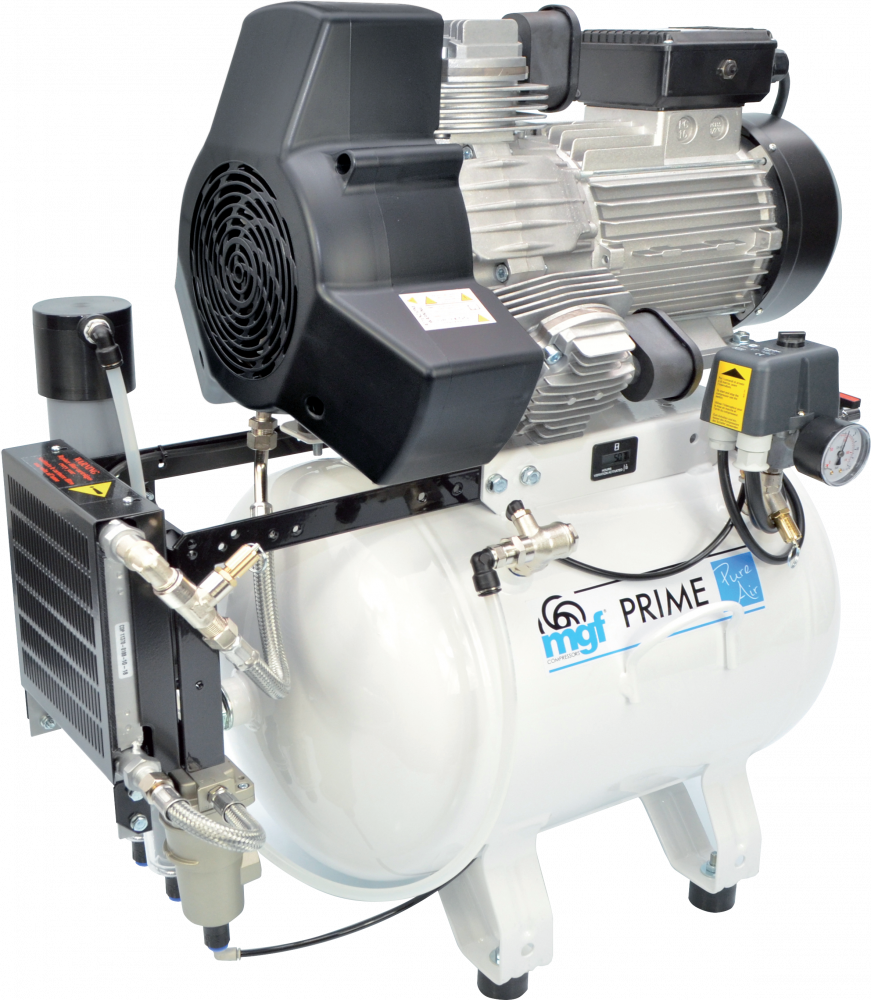

MGF 50/25 Prime M & Dryer (c.f.m. @5Bar - 7.9, L/min. @5Bar - 225)

HIGHLIGHTS:

• Open-Frame
• 2.2 kW - 225 l/min @ 5 Bar
• Internally Coated Receiver - 40 Lt
• Using PRIME technology: 70% duty, 65 dB(A), and low temperature output(for continuous requirement 90 l/min @ 7 Bar, for higher requirement look at the X-line range)
• Maximum Pressure 10 Bar
• ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point, and Zero oil trace
• Suitable for laboratory and other applications where oil free and air quality is important
• Integrated membrane dryer guaranteeing a dew point of -20°C at 5 Bar for HTM 2022 Compliance
• OPTIONAL: with Dessicant Dryer -40° dew point (ISO 8573 1.2.1)
• OPTIONAL: Cabinet version from 50 dB(A)
• OPTIONAL: Double filtration system providing an air purity of 0.01 microns - models with dryer
